Diodes Incorporated PI2EQX22024 USB Type-C™ Bi-Directional ReTimer

Diodes Incorporated PI2EQX22024 USB Type-C™ Bi-Directional ReTimer contains a receiver adaptive CTLE and transmitter 3-tap equalization, which can compensate channel loss up to -23dB for 5GHz signal transmission. The device offers USB 3.2 standards for USB Type-C data mode operation. The operation configurations are programmable through the I²C interface to select 1-lane USB3.2 Gen1x1/Gen2x1, 1/2-lane USB3.2 Gen1x1/Gen2x1 or USB3.2 Gen2x2.

The Diodes PI2EQX22024 utilizes a standard 1.8v V_dd power supply, achieving good power-saving management. The ReTimer complies with USB link power management states for active mode (U0) and power saving mode (U1, U2, U3). USB Rx detection continuously monitors the plug condition of the TX terminals. Additionally, the LFPS signal detector detects the LBPM (LFPS Based on PWM Message) of USB mode. The PI2EQX22024 has very low latency with the merit of the bit level ReTimer design, from signal input to output (<1ns) which serves good interoperability among various USB devices.

Features

Compliant for USB 10Gbps and 5Gbps standards
Support dual-port USB jitter cleaning
-23dB at 5GHz channel loss compensation
Low latency of <1ns
Adaptive Continuous Time Linear Equalizer (CTLE)
No reference clock design

Rx termination detection for power-saving control
Selectable adjustment of 3-taps transmitter
Single power supply of 1.8mV ±90mV
Totally lead-free and fully RoHS compliant
Halogen and antimony-free “green” device

Applications

Source devices including tablets, smartphones, notebooks, desktops, and all-in-one PCs
Sink devices, including monitors and TVs
PC docking, active cables, and dongles (adapters)

Diodes Incorporated PI2EQX22024 USB Type-C™ Bi-Directional ReTimer

Features

Applications

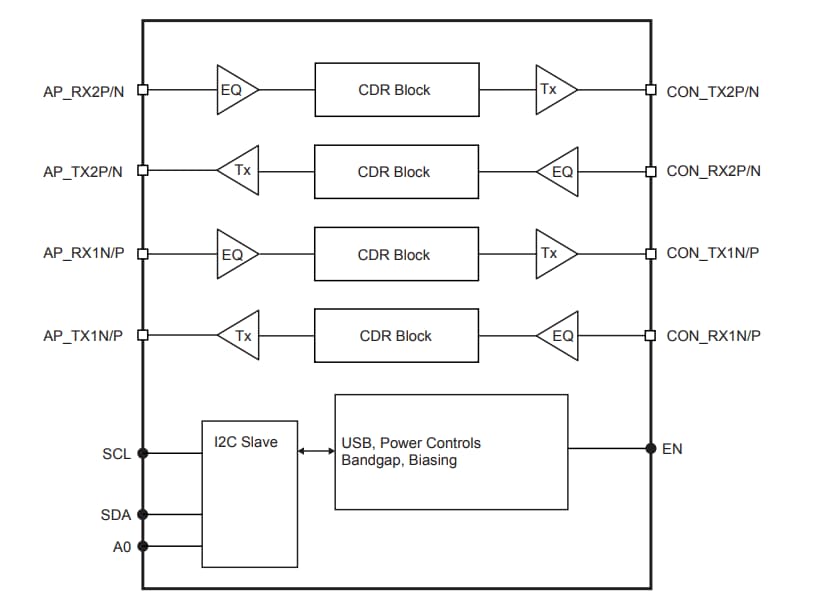

Bi-directional Retimer Block Diagram

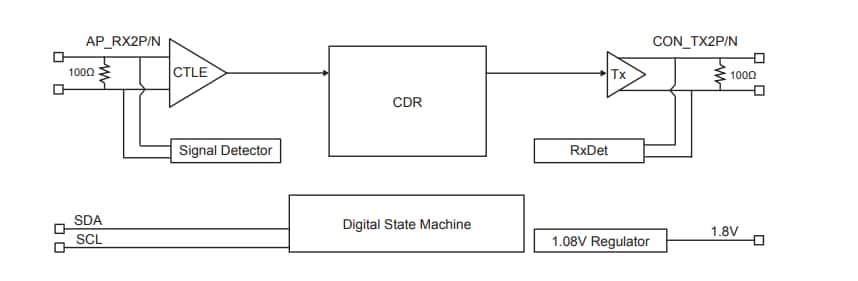

Functional Retimer Block Diagram

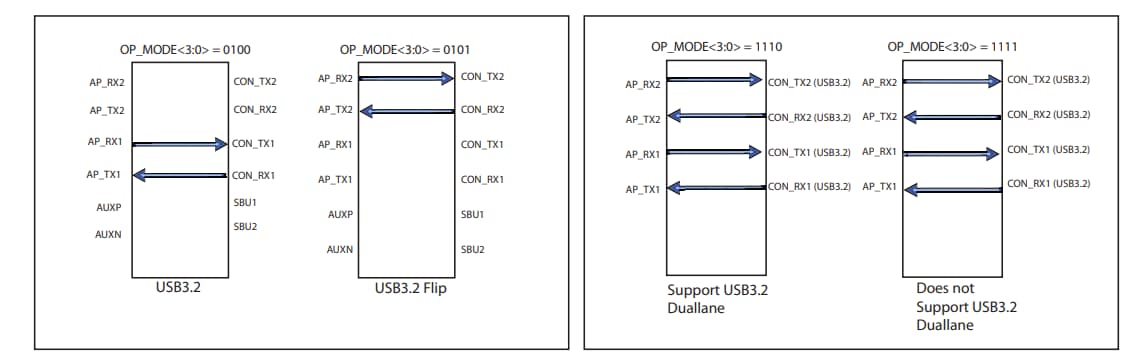

Channel Configuration Against the OP_MODE
