Diodes Incorporated AS2376Q AEC-Q100 Precision Operational Amplifier

Diodes Incorporated AS2376Q AEC-Q100 Precision Operational Amplifier is a low noise (9.5nV), low offset (25μV maximum) device that is precision optimized by using post-package trim. With a 5.5MHz bandwidth, the op-amp is suitable for a wide array of filtering and control applications. The low voltage operation, 950μA (maximum) low quiescent current, and excellent PSRR make the AS2376Q suitable for direct battery-powered and noise-sensitive applications with noisy low-voltage rails.

The dual-channel AS2376Q is offered in a SO-8 (standard) package, specified for operation from -40°C to +125°C. The Diodes Incorporated AS2376Q qualifies for AEC-Q100 Grade 1 with automotive-grade supporting PPAPs.

Features

Low Noise (9.5nV/ at 1kHz)
0.1Hz to 10Hz noise (0.8μV_PP)
760μA typical quiescent current
5μV typical offset voltage
5.5MHz gain bandwidth
Rail-to-rail I/O
Single-supply operation
2.2V to 5.5V supply voltage range

-40°C to +125°C operating temperature range
AEC-Q100 qualified
PPAP capable
SO-8 (standard) package
Moisture Sensitivity Level (MSL) 1
Halogen and antimony free
Lead-free and RoHS compliant

Applications

Auto pumps
Position sensors
Vehicle occupant detection sensors
Airbags
Wireless chargers
Vehicle occupant detection sensors

Onboard charges (OBC)
DC-DC converters
Battery management systems (BMS)
Signal conditioning
Brake systems

Diodes Incorporated AS2376Q AEC-Q100 Precision Operational Amplifier

Features

Applications

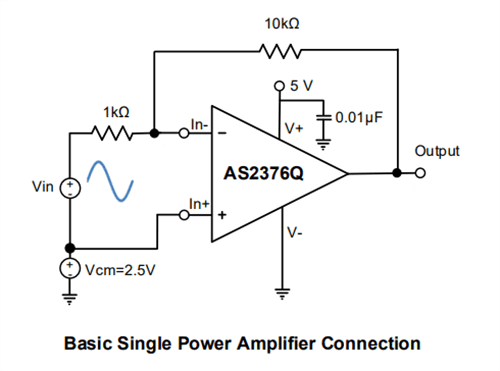

Typical Applications Circuit
