Diodes Incorporated APR3401 Synchronous Rectification Controller

Diodes Incorporated APR3401 Synchronous Rectification Controller is a secondary-side MOSFET driver for synchronous rectification in DCM/QR/CCM operation. The synchronous rectification reduces the secondary side rectifier power dissipation and provides a high-performance solution. Sensing the primary MOSFET gate-to-source voltage, the SOT26 packaged APR3401 can output the ideal drive signal with fewer external components.

Features

Synchronous rectification for DCM/QR/CCM operation flyback
Eliminates resonant ring interference
Few external components
SOT26 package

Moisture Sensitivity Level (MSL) 1 per JESD22-A113
Totally lead-free and fully RoHS compliant
Halogen and Antimony free “Green” device

Applications

Adapters/chargers for cells/cordless phones
ADSL modems

MP3
Other portable apparatus

Specifications

0V to 40V operating supply voltage range
150µA typical supply voltage startup current
190µA typical supply voltage operating current
9V typical V_DD pin regulation voltage
1.6µs to 2.4µs minimum gate driver on time range

Gate threshold
- 0V to 1V turn-on range
- -23mV to -7mV turn-off range
-40°C to +85°C ambient temperature range
Matte Tin-plated leads, solderable per JESD22-B102

Diodes Incorporated APR3401 Synchronous Rectification Controller

Features

Applications

Specifications

Typical Application Circuit

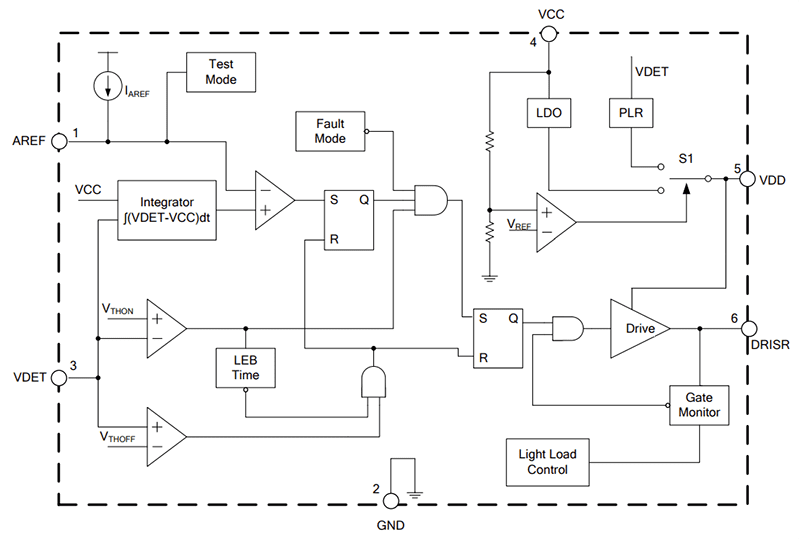

Block Diagram
