Diodes Incorporated AP74700Q Ideal Diode MOSFET Controller

Diodes Incorporated AP74700Q Ideal Diode MOSFET Controller is an automotive-compliant device that, when used with an appropriate external N-channel power MOSFET, provides a low-loss 20mV forward voltage drop rectifier in unidirectional power paths and reverse voltage. AP74700Q supports a wide input operation range from 3.2V to 65V, allowing control of many popular DC rail voltages such as 12V, 24V, or higher automotive battery systems. The 3.2V input voltage support fits severe cold crank requirements in automotive systems. The Diodes Incorporated AP74700Q can withstand and protect the loads from reverse voltages down to -65V.

Features

Input voltage ranges from 3.2V to 65V (3.9V start-up)
-65V reverse battery voltage
Charge pump for external N-channel power MOSFET
20mV ANODE to CATHODE forward voltage drop control
Low shutdown current of 0.7µA when disabled
Low quiescent current of 80µA when enabled
Fast reverse current block response time of <75µs
Active high enable operation
ESD protection 2kV of HBM and 1.5kV of CDM
AEC-Q100 qualification with device temperature grade 1 (-40°C to +125°C ambient operating temperature range)

Compliant with automotive transient requirements with appropriate TVS
ISO 7637-2 transient pulses
ISO 16750-2 load dump suppression
6-pin SOT26 package
Lead-free and fully RoHS compliant
Halogen and antimony-free “Green” device
The AP74700Q is suitable for automotive applications requiring specific change control; this part is AEC-Q100 qualified, PPAP capable, and manufactured in IATF16949 certified facilities

Applications

Automotive infotainment systems – clusters
Automotive ADAS systems – cameras

Automotive lighting systems
Automotive power trains

Diodes Incorporated AP74700Q Ideal Diode MOSFET Controller

Features

Applications

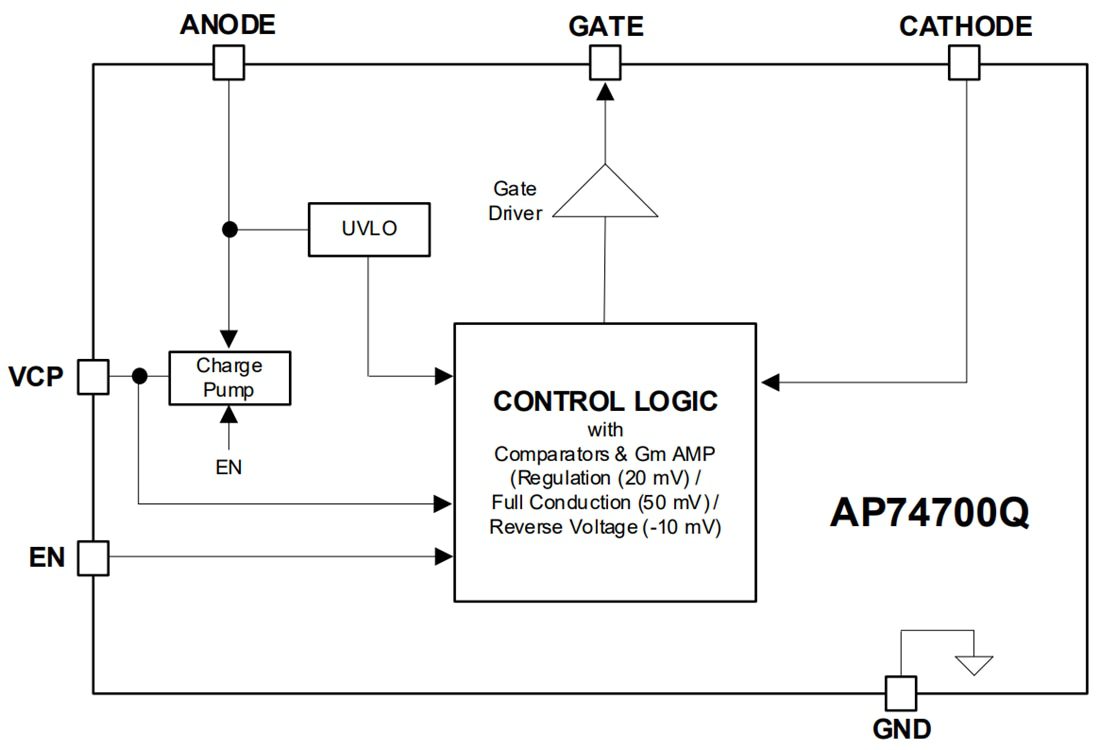

Functional Block Diagram
