Diodes Incorporated AP7366EA 600mA Low Dropout (LDO) Regulators

Diodes Inc. AP7366EA 600mA Low Dropout (LDO) Regulators are adjustable and fixed output voltage low dropout linear regulators. These devices include a pass element, band gap, error amplifier, current limit, and thermal shutdown circuitry. The device is turned on when the EN pin is set to logic high level.

The characteristics of low dropout voltage and low quiescent current make it ideal for low-power applications such as battery-powered devices. The typical quiescent current is approximately 60μA. Built-in thermal shutdown and current-limit functions prevent the IC from damage in fault conditions.

The Diodes Inc. AP7366EA is available with adjustable output from 0.8V to 5.0V, and fixed version with 1.0V, 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V and 3.9V outputs. The AP7366EA is available in SOT25 and U-DFN2020-6 packages.

Features

600mA low dropout regulator with EN
60µA low I_Q
2.2V to 6V wide input voltage range
8V to 5.0V wide adjustable output
Fixed output options are 0V, 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 3.9V
High PSRR (75dB at 1kHz)
150µs fast start-up time

Stable with Low ESR, 1µF ceramic output capacitor
Excellent load/line transient response
300mV at 600mA low dropout
Current limit and short circuit protection
Thermal shutdown protection
-40°C to +85°C ambient temperature range
Lead-free and fully RoHS compliant
Halogen and antimony-free “Green” device

Applications

Servers and notebook computers
Low and medium power applications

FPGA and DSP cores or I/O powers
Consumer electronics

Diodes Incorporated AP7366EA 600mA Low Dropout (LDO) Regulators

Features

Applications

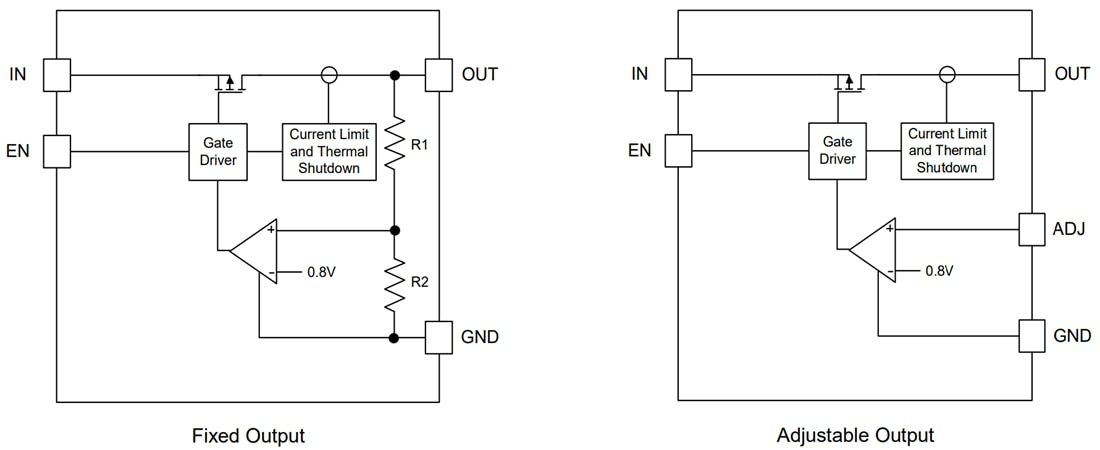

Functional Block Diagram
