Diodes Incorporated AP7361E Low Dropout Regulator

Diodes Inc. AP7361E Low Dropout (LDO) Regulator is a 1A, adjustable and fixed output voltage, and ultra-low dropout linear regulator with enable. This device includes passelement, error amplifier, band-gap reference, current limit, and thermal shutdown circuitry. The AP7361E comes with characteristics of low dropout voltage and low quiescent current making it suitable for low to medium power applications. This regulator is turned on when the EN pin is set to a logic high level.

The AP7361E regulator operates from 2.2V to 6V input voltage and typical quiescent current is approximately 60µA. Features include power good functions that prevent IC from damage in fault conditions. Applications include laptop computers, audio and video applications, battery powered devices, and home electrical appliances.

Features

2.2V to 6V wide input voltage range
±1% output voltage accuracy
360mV at 1A (typical) very low dropout voltage (3.3V)
Low quiescent current (I_Q) 60µA (typical)
0.8V to 5V adjustable output voltage range
Fixed output options are 1V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, and 3.3V
75dB @ 1kHz high PSRR
1.5A current limit

400mA fold-back short circuit protection
Power-Good (PG) output for supply monitoring and for sequencing of other supplies
Thermal shutdown protection
Stable with MLCC, e-cap, tan-cap, or solid capacitor 2.2µF
-40°C to 85°C ambient temperature range

Applications

LCD-TV and monitor
Set-top box
Home electrical appliances

Diodes Incorporated AP7361E Low Dropout Regulator

Features

Applications

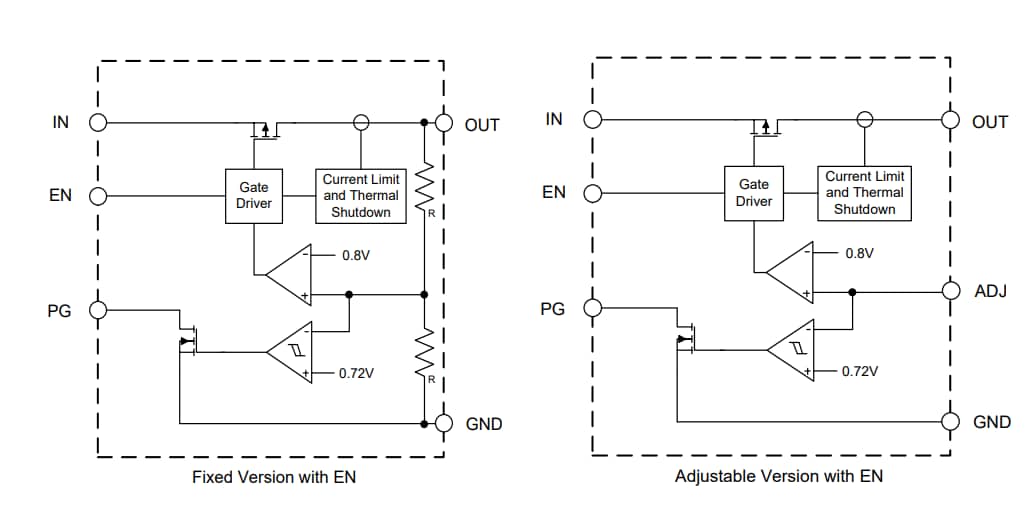

Functional Block Diagram

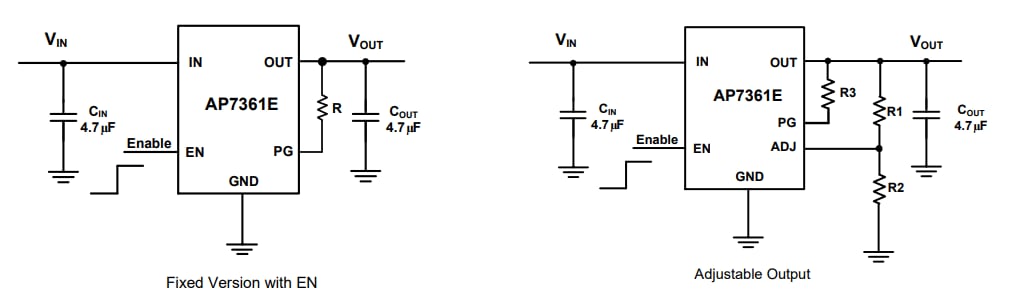

AP7361E Typical Application Diagram
