Diodes Incorporated AP66200 Synchronous DC-DC Buck Converter

Diodes Incorporated AP66200 Synchronous DC-DC Buck Converter is an adjustable switching frequency, internally compensated component with a 500kHz default internal frequency. The fully integrated AP66200 provides highly efficient step-down DC-DC conversion utilizing a 185mΩ high-side power MOSFET and an 80mΩ low-side power MOSFET. The Green U-QFN4040-16/SWP (Type UXB) packaged AP66200 enables a continuous load current (up to 2A) with efficiency as high as 95% in enhanced bias. A current mode control operation enables easy loop stabilization while supporting a wide capacitive load output range.

Features

3.8V to 60V input range
2A continuous output current
Output voltage adjustable from 0.8V to 50V
Enhanced efficiency mode with bias
Adjustable switching frequency, 500kHz default
Start-up with pre-biased output
External soft-start with tracking
- Sequential, Ratiometric, or Absolute
- Default internal soft-start of 2ms

Enable pin with 5% tolerance
Soft discharge
±5% power good detection with an internal pull-up resistor
Overcurrent Protection (OCP) with hiccup
Thermal protection
Green U-QFN4040-16/SWP (Type UXB) package
Lead-free and RoHS compliant
Halogen and Antimony-free, “Green” device

Applications

General-purpose point-of-load DC/DC power conversion
Telecommunication systems
Distributed power supplies
Home audio devices

Consumer electronics
Network supplies
FPGA, DSP, and ASIC supplies
Green electronics

Specifications

1.5µA typical shutdown supply current, 3.5µA maximum
40µA typical quiescent supply current, 60µA maximum
1.7ms typical soft-start period
0.75μA to 1.25μA soft-start charging current range
110ns minimum on-time (typical)
120ns minimum off-time (typical)

Operating temperature ranges
- -40°C to +85°C ambient
- -40°C to +125°C junction
Maximum ESD susceptibility
- ±2500V Human Body Model (HBM)
- ±1500V Charged Device Model (CDM)

Diodes Incorporated AP66200 Synchronous DC-DC Buck Converter

Features

Applications

Specifications

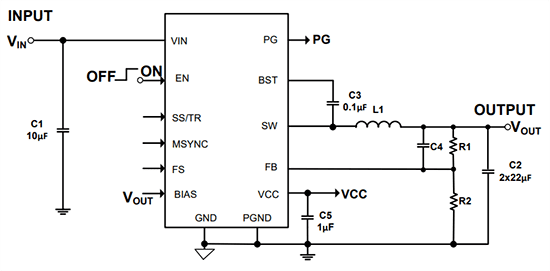

Typical Application

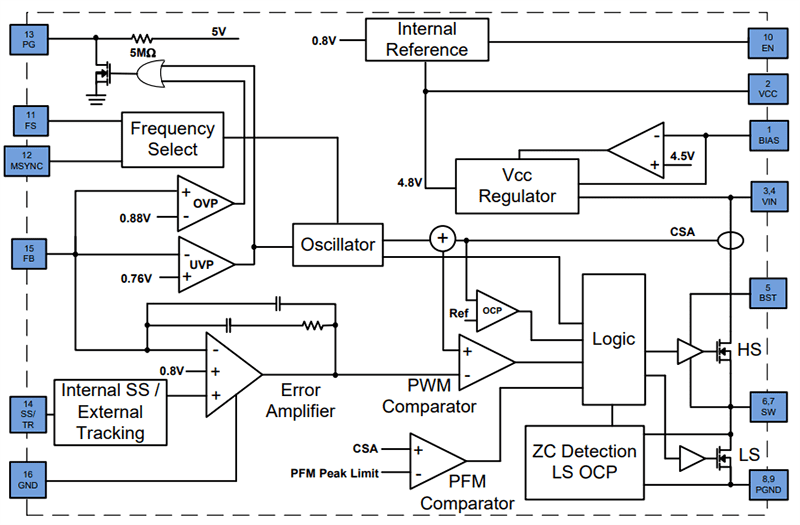

Block Diagram
