Diodes Incorporated AP64350QSP Evaluation Board

Diodes Incorporated AP64350QSP Evaluation Board features a simple layout and allows access to the appropriate signals through test points. The AP64350QSP evaluation board is designed to evaluate the AP64350Q 3.5A, synchronous buck converter. This AP64350Q converter offers a wide input voltage range of 3.8V to 40V. The AP64350Q buck converter fully integrates a 75mΩ high side power MOSFET and a 45mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.

Features

3.8V to 40V input voltage range
5V output voltage
3.5A continuous output current

0.8V ± 1% reference voltage
22μA low quiescent current

Applications

5V, 12V, and 24V distributed power bus supplies
White goods and small home appliances
Home audio
Network systems

Consumer electronics
Cordless power tools
Optical communication and networking systems
General-purpose point of load

Diodes Incorporated AP64350QSP Evaluation Board

Features

Applications

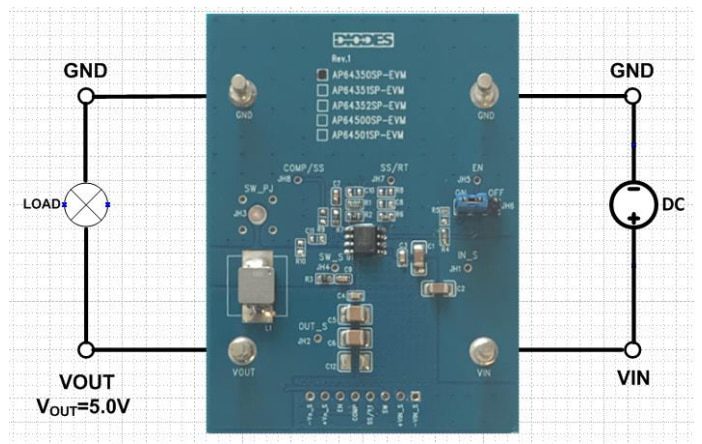

Board Overview

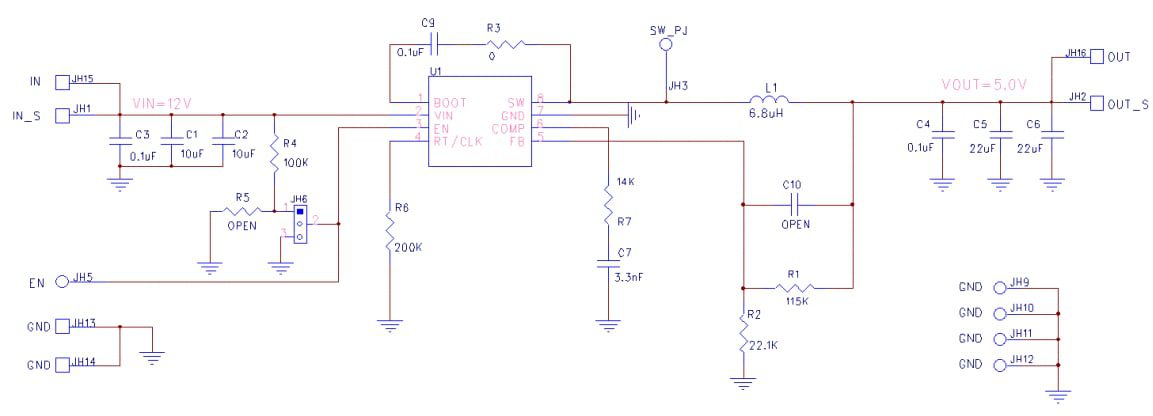

Schematic Diagram
