Diodes Incorporated AP64060 Synchronous Buck Converter

Diodes Incorporated AP64060 Synchronous Buck Converter is designed for Electromagnetic Interference (EMI) reduction and is available in a TSOT26 package. The AP64060 converter integrates a 600mΩ high-side power MOSFET and a 300mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion. This device features a proprietary gate driver scheme to resist switching node ringing without sacrificing MOSFET turn-on and turn-off. The AP64060 also features Frequency Spread Spectrum (FSS) with a switching frequency jitter of ±6%. Typical applications include 5V, 12V, and 24V distributed power bus supplies, automotive, white goods, small home appliances, FPGA, DSP, ASIC supplies, and general-purpose point of load.

Features

4.5V to 40V VIN
600mA continuous output current
Less than 0.1% output ripple at 12V
90µA low quiescent current (Pulse frequency modulation)
2.2MHz switching frequency
Supports Pulse Frequency Modulation (PFM)
Proprietary gate driver design for EMI reduction
Precision enable threshold to adjust UVLO

Protection Circuitry
- Undervoltage Lockout (UVLO)
- Output Overvoltage Protection (OVP)
- Cycle-by-cycle peak current limit
- Thermal shutdown
Totally lead-free and fully RoHS compliant
Halogen and antimony free
Green device

Applications

5V, 12V, and 24V distributed power bus supplies
eMeter
Automotive

White goods and small home appliances
FPGA, DSP, and ASIC supplies
General-purpose point of load

Diodes Incorporated AP64060 Synchronous Buck Converter

Features

Applications

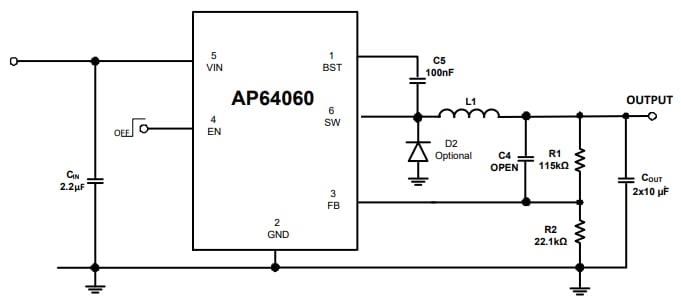

Typical Application Circuit Diagram

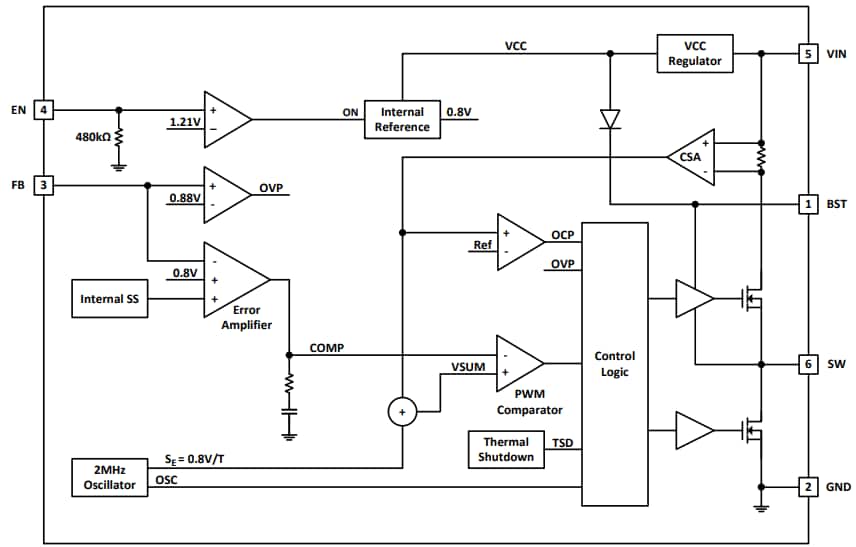

Functional Block Diagram
