View Datasheet

Diodes Incorporated AP61302Q Evaluation Board

Diodes Incorporated AP61302Q Evaluation Board features a straightforward design, offering convenient access to essential signals via test points. The Diodes Incorporated AP61302Q board can assess the AP61302QZ6’s performance. The AP61302QZ6 converters are automotive-compliant 3A converters with a wide input voltage range of 2.4V to 5.5V.

Features

  • Straightforward design, offering convenient access to essential signals via test points
  • Assess the AP61302QZ6‘s performance

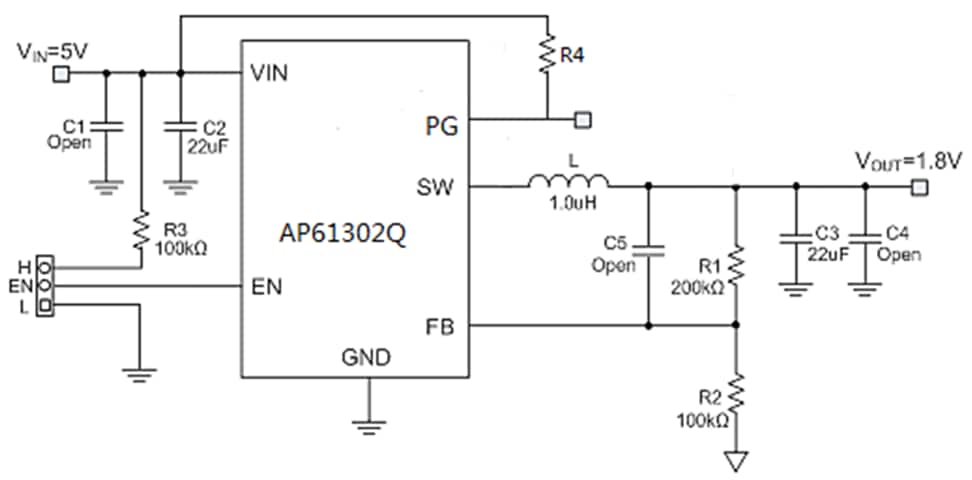

Evaluation Board Schematic

Diodes Incorporated AP61302Q Evaluation Board

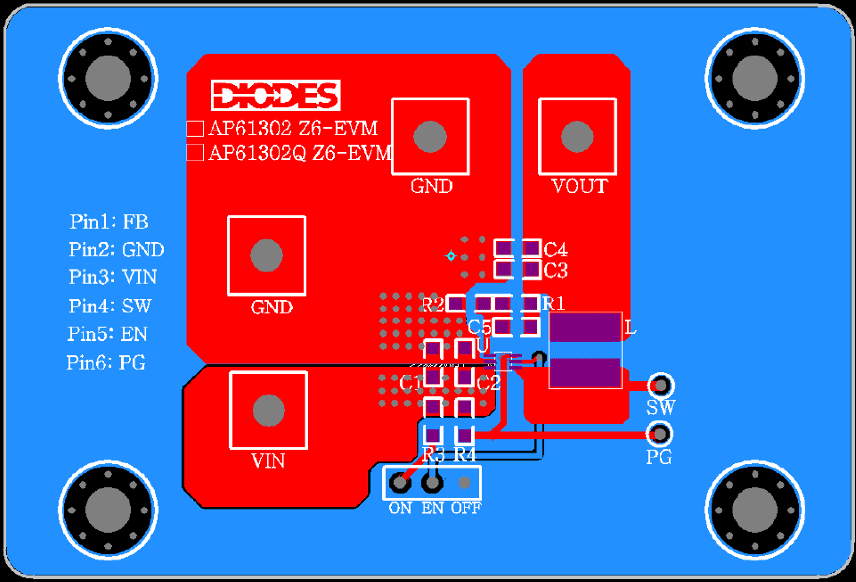

PCB Top Layout

Diodes Incorporated AP61302Q Evaluation Board
