Diodes Incorporated AP61300/AP61302 3A Synchronous Buck Converters

Diodes Incorporated AP61300/AP61302 3A Synchronous Buck Converters has a wide input voltage range of 2.4V to 5.5V. The device integrates a 70mΩ high-side power MOSFET and a 50mΩ low-side power MOSFET. This provides high-efficiency step-down DC-DC conversion. The AP61300/AP61302 can minimize the external component count due to its adoption of Constant On-Time (COT) control. This achieves fast transient response, easy loop stabilization, and low output voltage ripple. The device is available in a SOT563 package.

Features

V_IN 2.4V to 5.5V
Output Voltage (V_OUT) 0.6V to V_IN
3A Continuous Output Current
0.6V ± 2% Reference Voltage
19μA Low Quiescent Current (Pulse Frequency Modulation)
2.2MHz Switching Frequency (V_IN = 5V, V_OUT = 1.8V)
Up to 84% Efficiency at 5mA Light Load
Programmable Operation Mode Through EN
Pulse Frequency Modulation
Pulse Width Modulation Regardless of Output Load
Low-Dropout (LDO) Mode
Power-Good Indicator

AP61302
- Protection Circuitry
- Undervoltage Lockout (UVLO)
- VIN Overvoltage Protection (OVP)
- Peak Current Limit
- Valley Current Limit
- Thermal Shutdown
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free “Green” Device
- For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP
  capable, and manufactured in IATF 16949 certified facilities)

Applications

5V distributed power bus supplies
White goods and small home appliances
FPGA, DSP, and ASIC supplies
Network video cameras

Wireless routers
Consumer electronics
General-purpose point of load

Diodes Incorporated AP61300/AP61302 3A Synchronous Buck Converters

Features

Applications

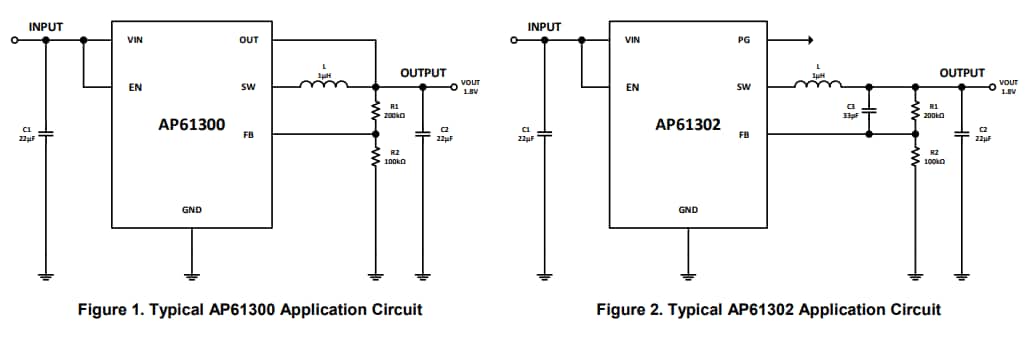

Typical Application Circuit
