Diodes Incorporated AP6120x Evaluation Boards

Diodes Incorporated AP6120x Evaluation Boards are designed with a straightforward layout, providing easy access to relevant signals via test points. The Diodes Incorporated AP6120x can assess the performance of the AP61200Z6. The AP61200Z6 converters have a wide input voltage range of 2.3V to 5.5V and a low quiescent supply current (IQ).

Features

  • Designed with a straightforward layout, providing easy access to relevant signals via test points
  • Assess the performance of the AP61200Z6

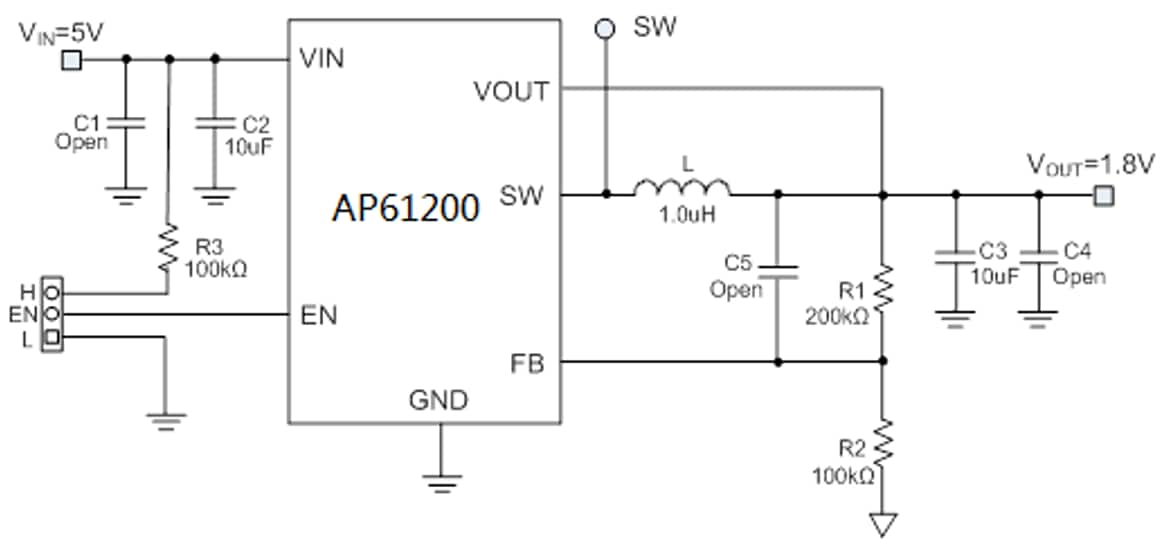

EVALUATION BOARD SCHEMATIC

Schematic - Diodes Incorporated AP6120x Evaluation Boards

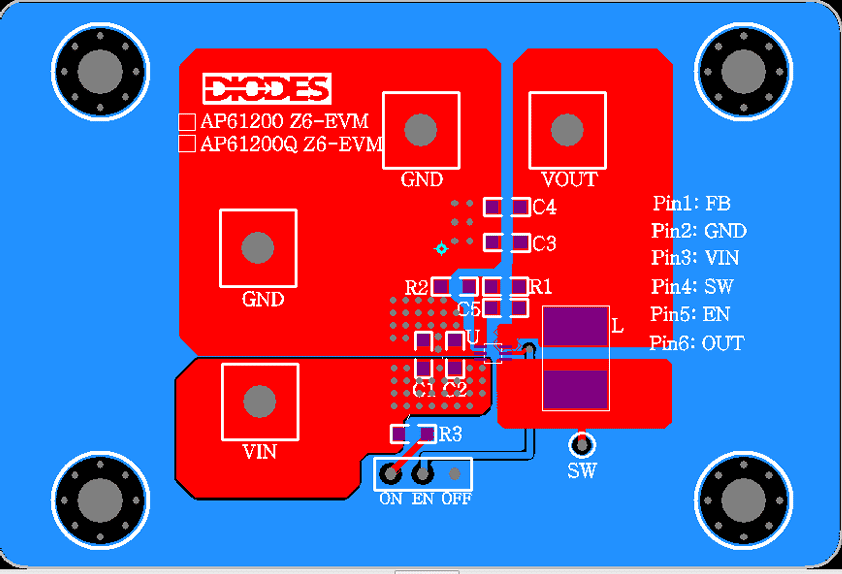

PCB TOP LAYOUT

Diodes Incorporated AP6120x Evaluation Boards
