Diodes Incorporated AP22652W6-EVM Evaluation Module

Diodes Incorporated AP22652W6-EVM Evaluation Module demonstrates of the AP22652. The AP22652 are single channel precision adjustable current-limited switches optimized for applications that require precision current limiting, or to provide up to 2.1A of continuous load current during heavy loads/short circuits.

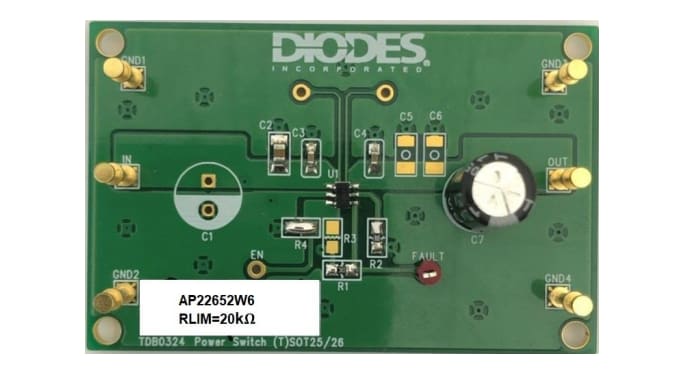

The Diodes Inc AP22652W6-EVM Evaluation Module includes all passive components required for device operation. The input pin should be connected to an external supply; the output should be connected to a load.

Features

Up to 2.1A Maximum load current
Accurate adjustable current limit, 125mA-2665mA
±7% Accurate Adjustable Current Limit, 1.735A with R_LIM = 15kΩ
Constant-current (AP22652, AP22653) during over-current
5µs (typ) Fast short-circuit response time
Reverse current blocking during shutdown and reverse current limiting during enable
3.0V – 5.5V Operating range

Built-in Soft-Start with 0.5ms typical rise time
Over-current, output over-voltage and thermal protection
Fault report (FAULT) with blanking time
2kV HBM, 500V CDM ESD Protection
Active low (AP22652) or active high (AP22653) enable
-40ºC to +85°C Ambient temperature range

Diodes Incorporated AP22652W6-EVM Evaluation Module

Features

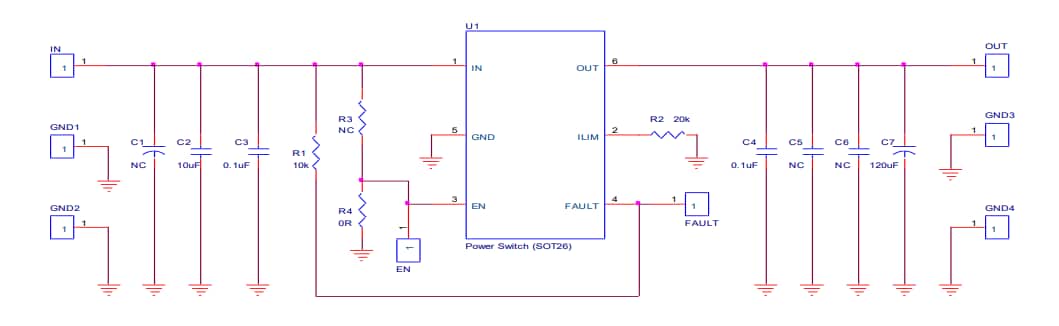

Schematic
