Diodes Incorporated AL1698K High Efficiency Dimmable LED Driver

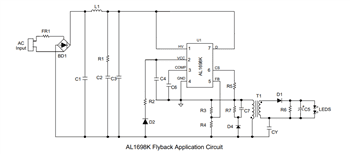

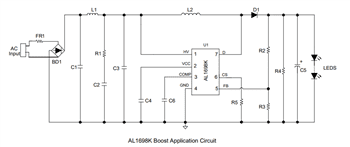

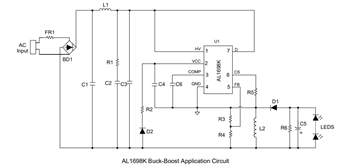

Diodes Incorporated AL1698K High-Efficiency Dimmable LED Driver is a high efficiency, high performance, high power factor, and high current precision boost, buck-boost, and flyback dimmable LED driver designed for triac dimmable LED lamp applications. The AL1698K allows an accurate output current over a comprehensive line and load regulation. Boost topology enables the device to achieve higher than 90% efficiency, meeting the lighting regulatory high-efficiency requirements. A wide switching frequency operates at Boundary Conduction Mode (BCM) to ease EMI/EMC design and testing.

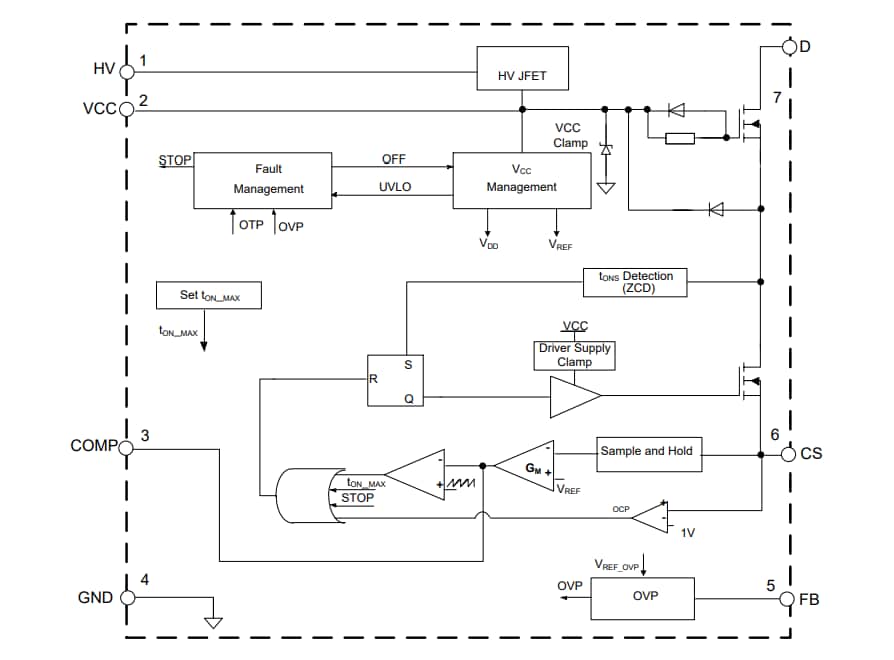

The Diodes Inc AL1698K High-Efficiency Dimmable LED Driver features a built-in high voltage JFET, which provides the system with a fast start-up time and enables users an easy and stable V_CC supply design. The AL1698K LED driver integrates a 600V/2A high voltage MOSFET. It can cover both 120VAC and 230VAC triac dimmable applications by eliminating the external high voltage MOSFET, reducing the system BOM cost. The AL1698K has the built-in thermal fold-back protection trigger point to reduce output current automatically. Other protection features enhance the LED lighting system’s safety and reliability.

The AL1698K dimming curve is compliant with the NEMA SSL6 standard. The AL1698K applies to a wide range of dimmers, such as leading and trailing edge, to reach a deep dimming down to 1%.

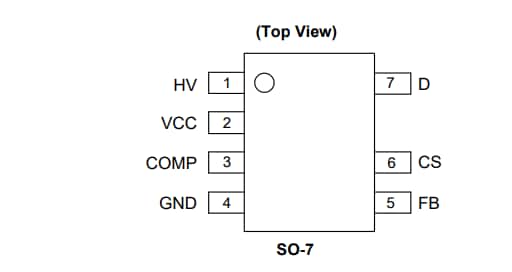

The AL1698K LED Driver is housed in a SO-7 package.

Features

High efficiency >90% (Boost topology)
±3% Tight current sense tolerance
Internal protections
- Under Voltage Lockout (UVLO)
- Leading-Edge Blanking (LEB)
- Cycle-By-Cycle Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Output Short Protection (OSP)
- Thermal Foldback Protection (TFP)
- Over Temperature Protection (OTP)
