Diodes Incorporated AH3524A Hall-Effect Omnipolar Switches

Diodes Incorporated AH3524A Hall-Effect Omnipolar Switches are ideal for proximity, position, and level sensing in industrial, home appliances, and personal care devices. The Diodes Incorporated AH3524A operates reliably across a supply range of 3.0V to 28V. The device features a chopper-stabilized architecture and includes internal circuitry with temperature compensation. The device has a reverse blocking diode, a Zener clamp for supply protection, overcurrent limit, and a Zener clamp on the output for enhanced robustness.

Features

Omnipolar operation
BOP and BRP of ±40G and ±25G typical high sensitivity
Internal pullup resistor on the output with overcurrent limit
3.0V to 28V operating voltage range
Resistant to physical stress
Chopper stabilized design provides superior temperature stability, minimal switch point drift, and enhanced immunity to stress

Good RF noise immunity
Zener clamp on supply and output pins
-40°C to +125°C operating temperature
8kV high ESD HBM
Industry-standard SOT23 (type S), SIP-3 (ammo pack), and SIP-3 (bulk pack) packages
Totally lead-free and fully RoHS compliant
Halogen and antimony-free, green device

Applications

Position and proximity sensing in industrial applications
Open and close detection
Position detection

Level detection
Flow meters
Contactless switches

Diodes Incorporated AH3524A Hall-Effect Omnipolar Switches

Features

Applications

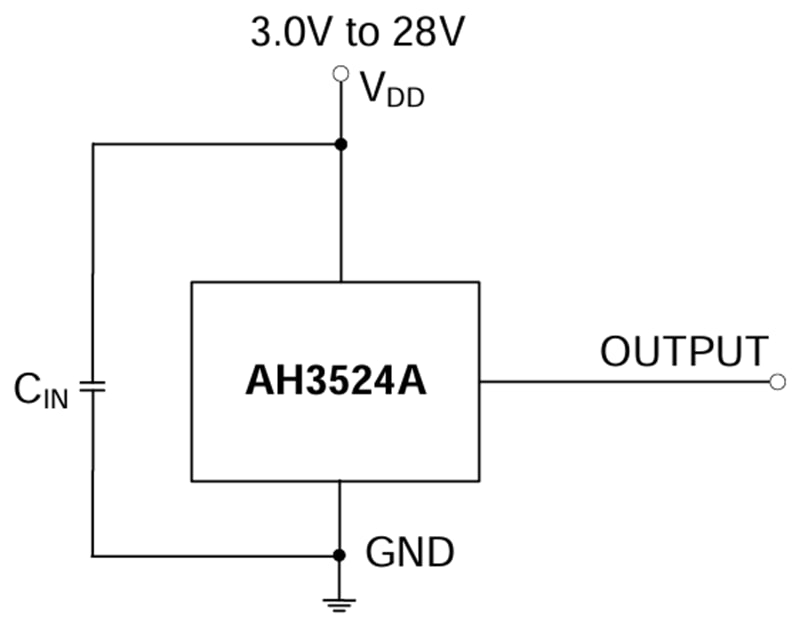

Typical Applications Circuit

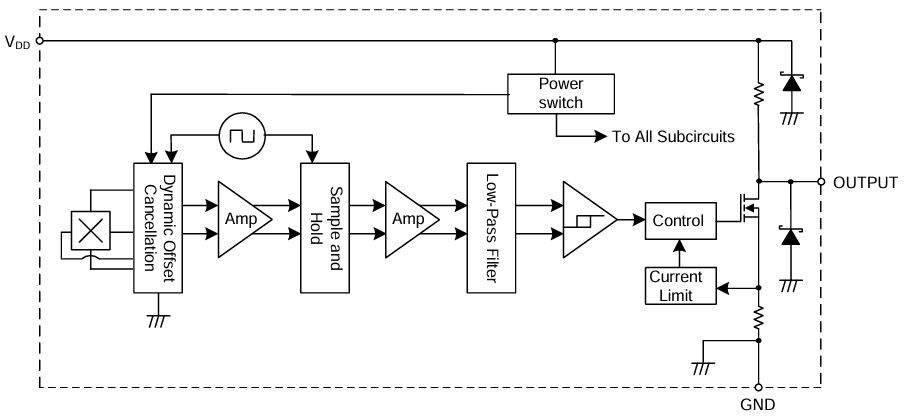

Block Diagram
