Diodes Incorporated AH3323A High-Voltage Hall-Effect Unipolar Switches

Diodes Incorporated AH3323A High-Voltage Hall-Effect Unipolar Switches are designed for proximity, position, and level sensing in industrial, home appliance, and personal care applications. The Diodes Incorporated AH3323A operates seamlessly within a supply range of 3.0V to 28V, ensuring reliability. The design incorporates a chopper-stabilized architecture, an internal bandgap regulator for temperature-compensated supply, and protective features like a reverse-blocking diode with a Zener clamp on the supply. Additionally, the output is equipped with an overcurrent limit and a Zener clamp.

Features

Unipolar operation
BOP and BRP of +55G and +35G typical high sensitivity
Internal pull-up resistor on the output with overcurrent limit
3.0V to 28V operating voltage range
Resistant to physical stress
Chopper stabilized design provides superior temperature stability, minimal switch point drift, and enhanced immunity to stress
Good RF noise immunity

Reverse blocking diode
Zener clamp on supply and output pins
-40°C to +125°C operating temperature
8kV high ESD HBM
Industry Standard SOT23 (type S) and SIP-3 (bulk pack) packages
Totally lead-free and fully RoHS compliant
Halogen and antimony-free, green device

Applications

Position and proximity sensing in industrial applications
Open and close detection
Position detection

Level detection
Flow meters
Contactless switches

Diodes Incorporated AH3323A High-Voltage Hall-Effect Unipolar Switches

Features

Applications

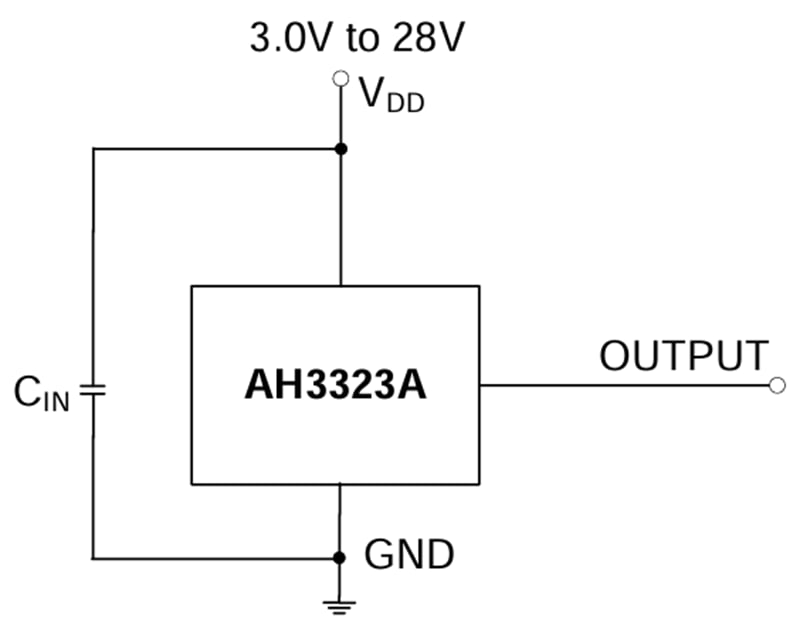

Typical Applications Circuit

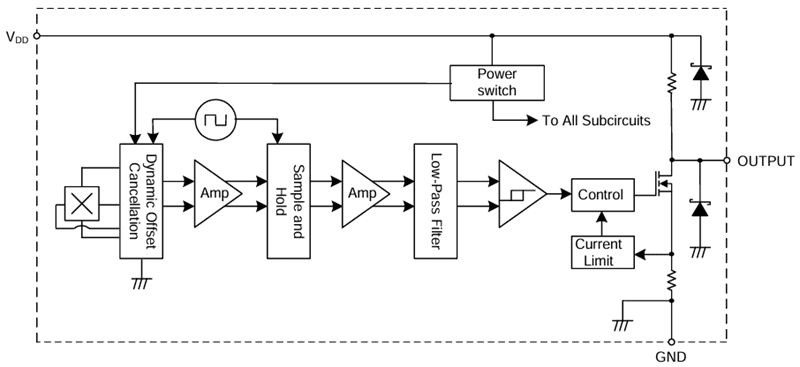

Block Diagram
