Diodes Incorporated AH1388 Dual-Output Unipolar Hall Effect Switch

Diodes Incorporated AH1388 Dual-Output Unipolar Hall Effect Switch is optimized for portable and battery-powered consumer equipment. The AH1388 can operate from a 1.6V to 3.6V power supply range, and uses a sleep function to give an average supply current of only 12μA at 1.85V. These low-power attributes make the AH1388 ideal for battery-powered equipment and low voltage microcontrollers. To minimize PCB space, the AH1388 is packaged in small low profile X2-DFN1410-4.

Features

Two monolithic unipolar hall switches
- Operation with a North Pole (Output1) to part marking surface
- Operation with a South Pole (Output2) to part marking surface
1.6V to 3.6V supply voltage
Micropower operation
Dual outputs for independent pole detection for design flexibility
Internal pull-up and pull-down capability
Good RF noise immunity

Chopper stabilized design
- Superior temperature stability
- Extremely low switch-point drift
- Insensitive to physical stress
-40°C to +85°C operating temperature range
5kV ESD on supply and output pins
Small, low profile X2-DFN1410-4 package
Totally lead-free and fully RoHS compliant
Halogen and Antimony Free, “Green” Device

Applications

Smart covers and dock detection for smartphones and tablets
Position detect for cameras and handheld gaming consoles
Door, lid, and tray position detect switches in home appliances and industrial applications

Level, proximity, and position switches
Contactless switches in home appliances and industrial applications

Diodes Incorporated AH1388 Dual-Output Unipolar Hall Effect Switch

Features

Applications

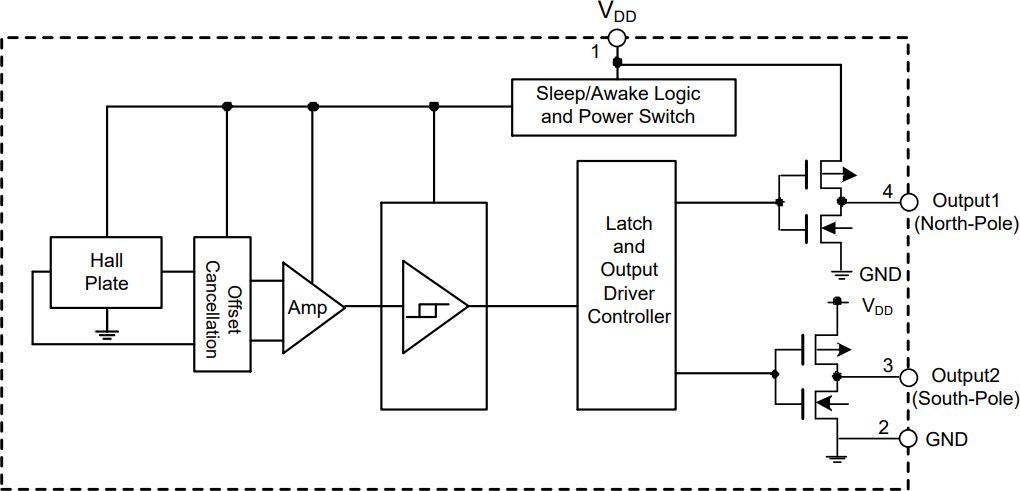

Block Diagram

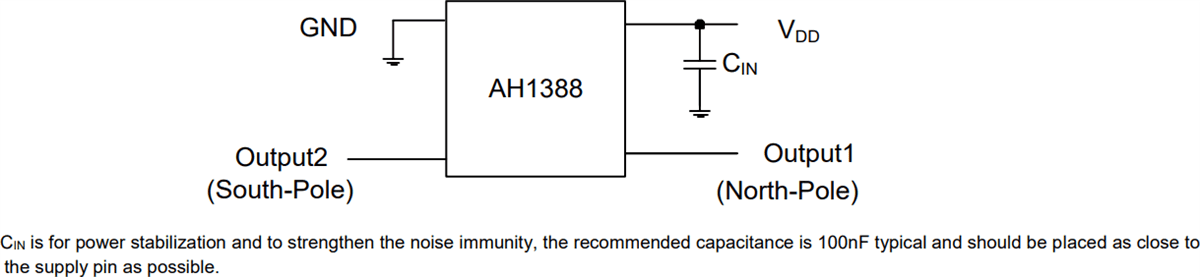

Typical Application Circuit
