Diode Laser Concepts Industrial 520nm 45° M12 Laser

Diode Laser Concepts Industrial 520nm 45° M12 Laser offers a continuous wave, an electrically isolated diode, and a custom drive circuit in a hard anodized case. The industrial M12 laser features an operating voltage of 12V to 24V and 25mA to 40mA load current. The DLC M12 laser provides electronic protection, including surge, static discharge immunity, and reverse polarity.

Features

12V to 24V operation
Gaussian line laser projection-type
520nm wavelength
Continuous wave
Hard anodized case
Electrically isolated diode
Custom drive circuit

Photodiode feedback
Optical power stability over the device’s lifetime
Advanced thermal management
IP67 environmentally sealed package
Sapphire output window with BBAR coating
ESD and reverse polarity protection
Industrial standard M12 connector

Specifications

5% optical power stability (Pk-Pk)
3mW to 3.9mW optical power
10V_DC to 26V_DC operating voltage
25mA to 40mA load current
Continuous wave operation mode

M12 connector
Electronic protection
- Surge protection
- Static discharge immunity (≥4kV contact)
- Reverse polarity protection

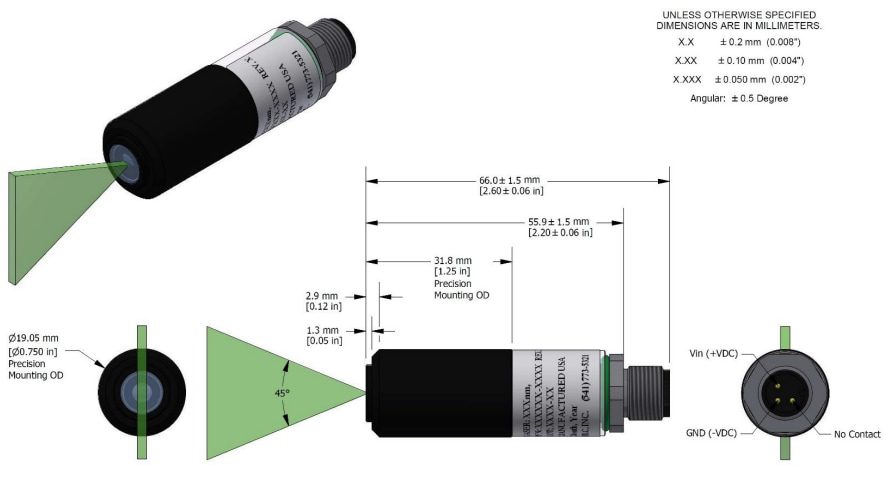

Mechanical Drawing

Mechanical Drawing - Diode Laser Concepts Industrial 520nm 45° M12 Laser
