Digilent MCC USB-230 Multifunction USB DAQ Devices

Digilent MCC USB-230 Multifunction USB DAQ Devices incorporate 8 SE/4 DIFF analog inputs, a 16-bit resolution, two 16-bit analog outputs, eight digital I/O, and one 32-bit counter. The data acquisition solution is easy-to-use, easy-to-integrate, and easy-to-support. The USB-231 offers a 50kS/s sample rate, while the USB-234 provides a 100kS/s sample rate.

The Digilent MCC USB-230 Multifunction USB DAQ Devices include DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Drivers are supplied for the most popular applications and programming languages, including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, and Python™.

Features

8 SE/4 DIFF analog inputs
16-bit resolution
USB-231: 50kS/s sample rate
USB-234: 100kS/s sample rate
±10V input range
Two 16-bit analog outputs
Eight digital I/O

One counter input
No external power is required
Drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, and Python™
Product Compliance
- HTC: 8471.80.9000
- ECCN: EAR99

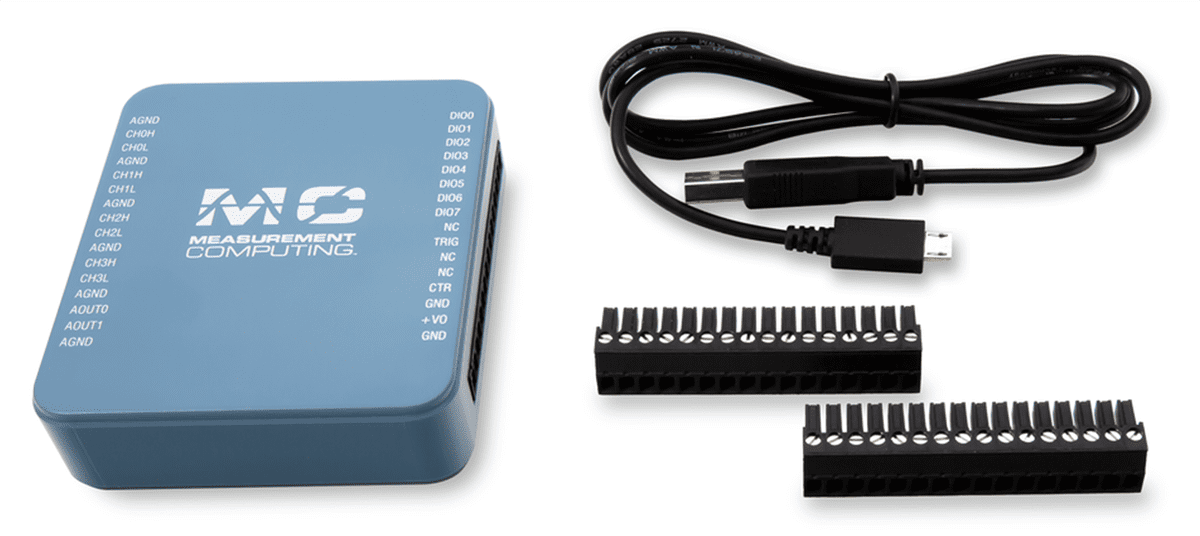

Kit Contents

USB-231 or USB-234
USB cable (micro-USB type B)
Two screw terminal connector plugs

Printed insert: DAQami Quick Start
MCC packaging assembly/foam, etc.

Digilent MCC USB-230 Multifunction USB DAQ Devices

Features

Kit Contents

Components

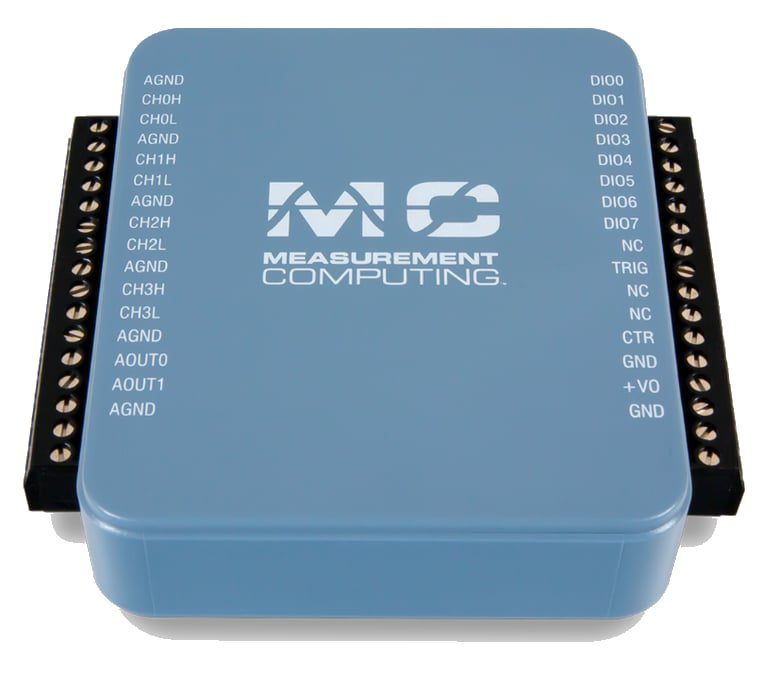

Overview

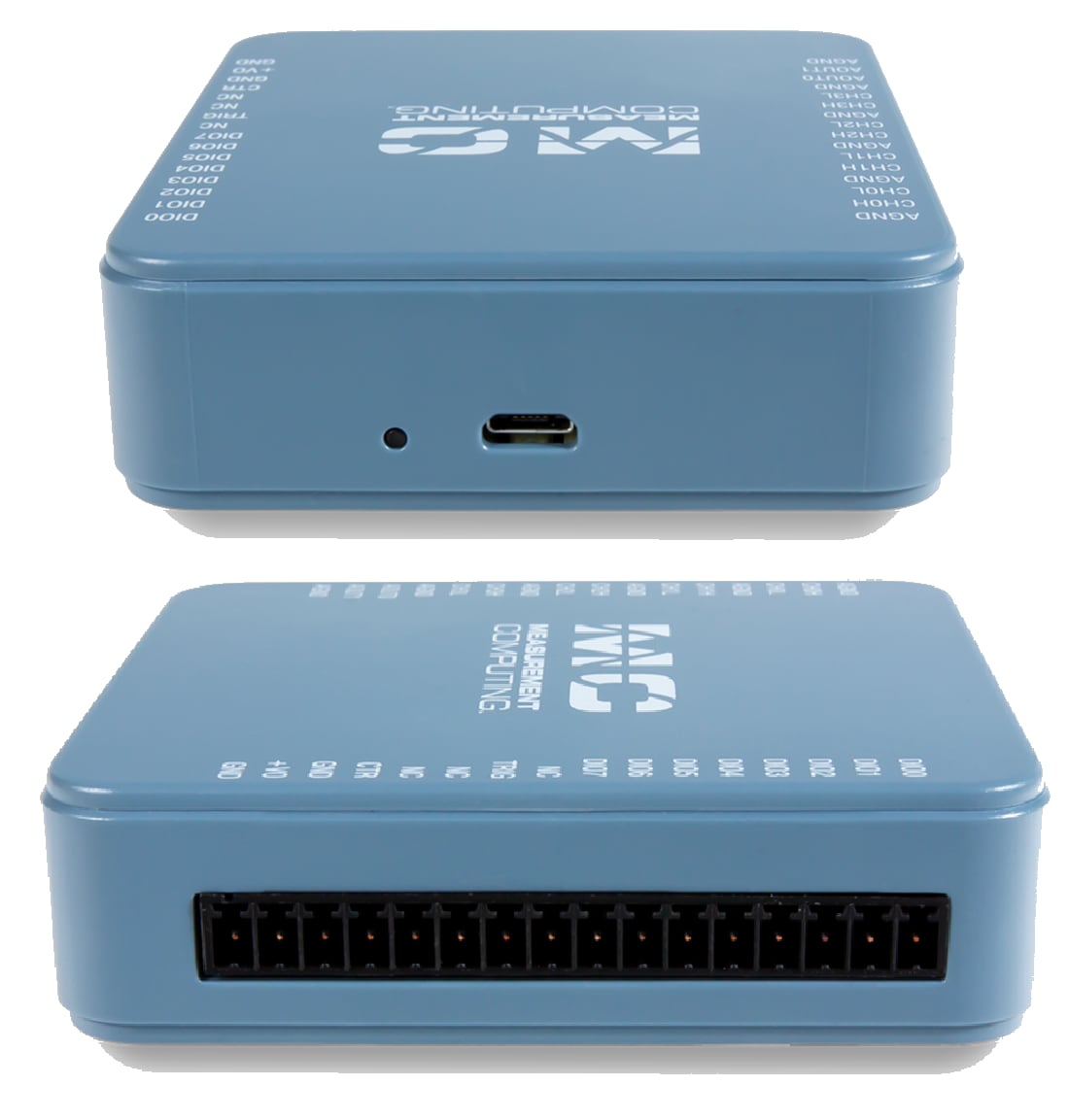

Connections
