Digilent MCC E-1608 Multifunction Ethernet DAQ Device

Digilent MCC E-1608 Multifunction Ethernet DAQ Device is an easy-to-use, easy-to-integrate, and easy-to-support data acquisition solution. The E-1608 integrates 8 SE/4 DIFF analog inputs, 16-bit resolution, 250 kS/s sample rate, two 16-bit analog outputs, eight digital I/O, and one 32-bit counter input. The free DAQami software is available for out-of-the-box data logging, viewing of data, and generating signals. Additionally, drivers for the most popular applications and programming languages, including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™ are available.

Features

8 SE/4 DIFF analog inputs
16-bit resolution
250kS/s sample rate
±10V, ±5V, ±2V, ±1V input ranges
Two 16-bit analog outputs
Eight digital I/O

One counter input
Drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™
Product Compliance
- 8473.30.1180 HTC
- 3A992.a ECCN

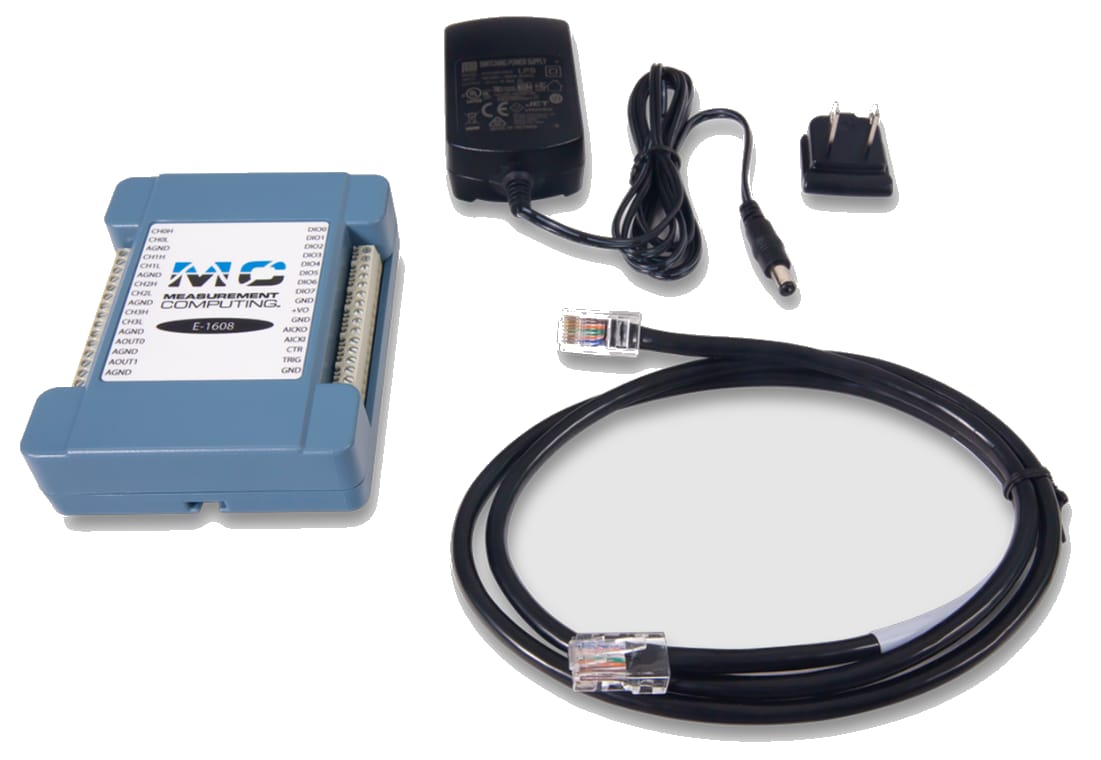

Kit Contents

E-1608
Ethernet Cable 1M
Field Changeable AC input plug (USA style is included, other types may be purchased separately)

Power supply, 5 VDC output
Printed insert: DAQami quick start
MCC packaging assembly/foam, etc

Digilent MCC E-1608 Multifunction Ethernet DAQ Device

Features

Kit Contents

Components

Overview

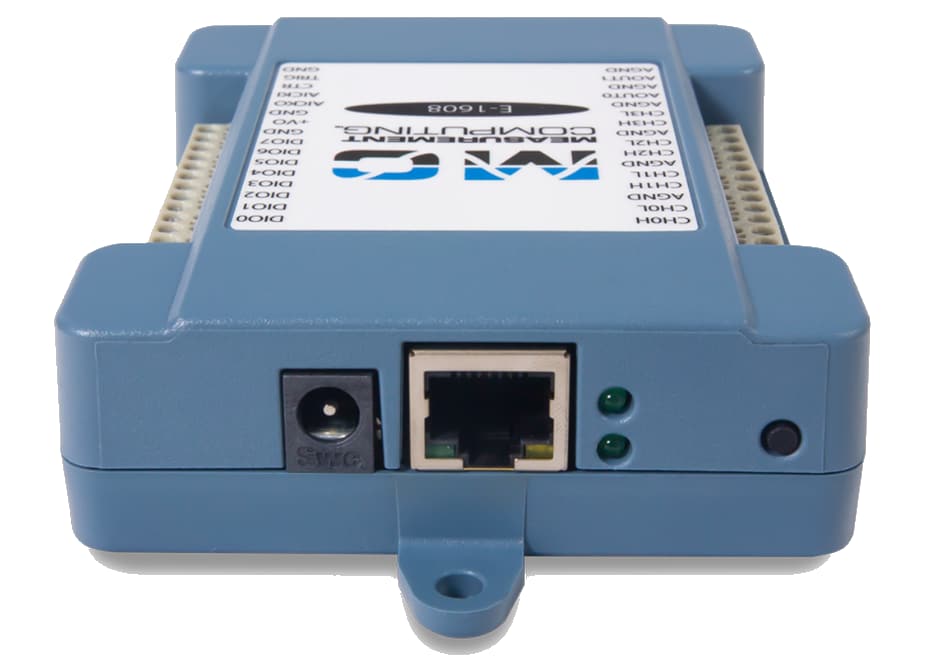

Connections
