Digilent Audio Adapter for Analog Discovery

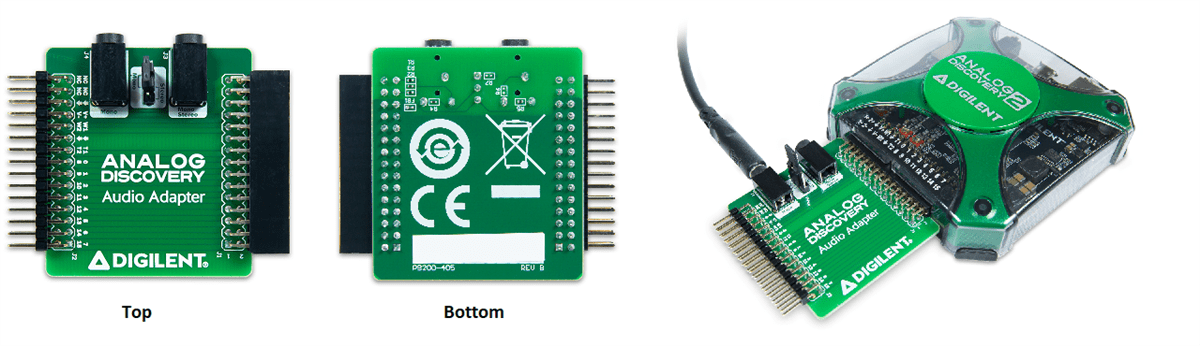

Digilent Audio Adapter for Analog Discovery provides an easy method of connection to analyze audio signals with the Analog Discovery oscilloscope instrument. This add-on board is equipped with one mono and one mono/stereo jack connector. These connectors are connected to the inputs of the oscilloscope and a 2×15 MTE connector to pass through all other signals. The audio adapter is compatible with Analog Discovery Legacy and Analog Discovery 2. The board operates at 5V supply voltage and is available in 50mm x 45mm dimensions.
