Digilent ADP5250 Analog Discovery Pro

Digilent ADP5250 Analog Discovery Pro is an all-in-one 1GS/s 100MHz mixed-signal oscilloscope, function generator, power supply, and DMM. The ADP5250 provides a higher sample rate, bandwidth, and rugged design to the Analog Discovery Pro family. The WaveForms application software drives the ADP5250.

The Digilent ADP5250 Analog Discovery Pro combines a mixed-signal oscilloscope with two 100MHz bandwidths, 1GS/s analog channels, 34 digital channels, and a tri-output power supply capable of up to 25V, an external trigger, Waveform Generator, and a built-in programmable DMM. This design creates a complete set of instruments into a flexible and programmable device. The ADP5250 achieves full DMM capabilities, including true current and resistance measurement and a 300V input range.

The ultimate all-in-one test system features a variety of advanced triggering options. For example, instruments within WaveForms can be cross-triggered by activating an oscilloscope capture based on a received and decoded digital protocol. In addition, external signals can trigger events using the dedicated external trigger input/output. The free WaveForms software enables these features to be configurable in the instruments themselves or for more control or automation in one of the available scripting interfaces.

Features

Analog Inputs:
- Used in the oscilloscope, data logger, network analyzer, spectrum analyzer, and impedance analyzer
- Two analog input channels accessible via front panel BNC connectors
- Single-ended channel type
- Analog bandwidth of 100MHz @ -3dB
- 8-bit resolution
- Max sampling rate of 1GS/s single channel
- Maximum input range of 40V peak to peak
- AC or DC coupling
- Maximum record length: 1 MS per channel
- Front panel connector generating a 5V, 1kHz, square wave for convenient compensation of BNC oscilloscope probes
Analog outputs:
- Used in the Waveform Generator, Impedance Analyzer, and Network Analyzer
- One channel is accessible via a front panel BNC connector
- 14-bit resolution
- AC amplitude (max) of ±12V
- Maximum analog bandwidth of 5MHz @ -3dB
- Maximum sampling rate of 125MS/s
- A software-switchable filter of 36MHz lowpass, 7-pole, elliptical
Digital Multimeter:
- Used in the DMM instrument
- DC voltage, AC voltage, DC current, AC current, resistance, diode, continuity functions
- Resolution of 51/2 digits
- Sample rate 5S/s
- Input protection:
  - Resistance, diode up to 300V DC
  - DC and AC voltage up to 300V DC or 265VAC (rms) 400V AC (peak)
  - DMMA current connector fuse of internal ceramic fuse, 10A 250V, time-delay, 5mm x 20mm, T 10A H 250V
  - DMMmA current connector fuse of internal ceramic fuse, 1.25A 250V, time-delay, 5mm x 20mm, T 1.25A H 250V
  - 300V DC or AC (rms) Maximum common-mode voltage

Power Supplies:
- 3.3V, 20mA Digital supply
- DC power supplies:
- 0V to 6V variable, 1A max current
- 0V to 25V variable, 500mA max current (isolated)
- 0V to -25V variable, 500mA max current (isolated)
Digital inputs:
- Used in the logic analyzer
- 32 Channels
- 0V to 5V Input voltage
- 0V to 2V Input threshold
- 1GS/s Max sampling rate
- 1MS Typical record length
Digital Inputs and Outputs:
- Used in the Static I/O instrument
- 8 Channels
- 5V compatible TTL Input logic standard
- 3.3V LVTTL Output logic standard
Advanced Triggering:
- Trigger sources: oscilloscope analog channels, function generator start, digital inputs, digital I/O, power line frequency, external trigger
- Trigger modes
  - Normal, auto, force, single
- Analog trigger
  - Edge with hysteresis
- Digital trigger
  - Edge, level, pattern, glitch
- External trigger:
  - 5V compatible TTL input or 3.3V LVTTL output
  - 4mA drive strength
Connectivity:
- USB 2.0 Hi-speed device to computer
Other:
- Auxiliary powered
- 25.40cm x 19.05cm x 7.77cm (10.00in x 7.50in x 3.06in) Dimensions
- 2.05kg (4lb 8.3oz) Weight
- Shock and vibration tested
Product compliance:
- 8471809000 HTC
- 3A992.a ECCN

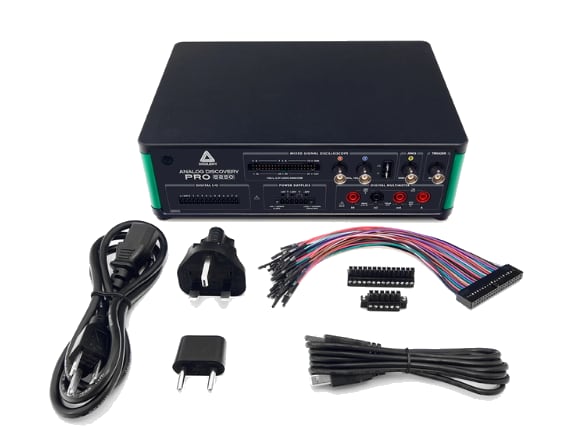

Included in Package

Kit Contents

ADP5250 Probe bundle:
- 1x ADP5250
- 1x USB A to B cable
- 1x 1×14 Digital I/O screw terminal adapter
- 1x 1×6 Power supply screw terminal adapter
- 1x 2×18 Logic analyzer MTE cable
- 1x US IEC Cable
- 1x EU Adapter
- 1x UK Adapter
- 2x P2150 150MHz Oscilloscope probe
- 2x BNC to Mini-grabber cable
- 1x Set of red and black DMM probes

ADP5250:
- 1x ADP5250
- 1x USB A to B cable
- 1x 1×14 Digital I/O screw terminal adapter
- 1x 1×6 Power supply screw terminal adapter
- 1x 2×18 Logic analyzer MTE cable
- 1x US IEC Cable
- 1x EU Adapter
- 1x UK Adapter

Digilent ADP5250 Analog Discovery Pro

Features

Included in Package

Kit Contents

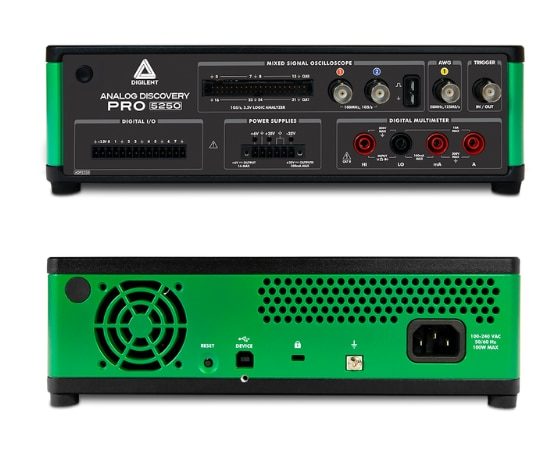

Layout
