Digi EX12 LTE Cellular Extenders

Digi EX12 LTE Cellular Extenders provide primary and failover solutions that deliver cellular access and RS-232 for existing infrastructure and Out-Of-Band (OOB) management. This extender includes an embedded LTE Cat 4 cellular modem with dual SIM slots to protect against downtime by automatically switching to a secondary cellular carrier. This is done if the primary connection loses connectivity. The EX12 extender can be coupled with a wireline internet connection to provide dual-WAN connectivity along with wired-to-wireless backup. This approach maximizes uptime and ensures business connectivity and continuity for systems demanding high network availability, such as point-of-sale, mobile kiosks, and digital signs.

The EX12-R004-OUS Extender offers a remote mounting kit, 2-port 10/100; RJ-45, RS-232; US and Canada, LTE / HSPA+ Cat 4; and includes antennas, power supply, site survey battery, PoE injector and mounting accessories.

The EX12-0004-OUS Extender without a remote mounting kit offers 2-port 10/100; RJ-45, RS-232; US and Canada, LTE / HSPA+ Cat 4; and includes antennas and a power supply.

Features

  • Redundant connectivity with dual SIMs and Digi SureLink™
  • Optimized connectivity to any Ethernet device
  • Built-in Digi TrustFence® for device security, device identity, and data privacy
  • Site survey battery pack to identify the best location for optimum cellular reception
  • Remote mounting kit for quick and easy installation
  • Automatic cellular carrier detection and switching with Carrier Smart Select™
  • Digi remote manager software for easy setup, mass configuration, and management
  • Associated LTE Dipole SMA 1-3dBi 698-960/1710-2170/2500-2700MHz RAL9003 signal, white antenna

Specifications

  • 256MB RAM and 512MB flash memory
  • 127mm x 127mm x 25mm dimensions
  • 0°C to +40°C operating temperature range
  • 18VDC, 1A power input

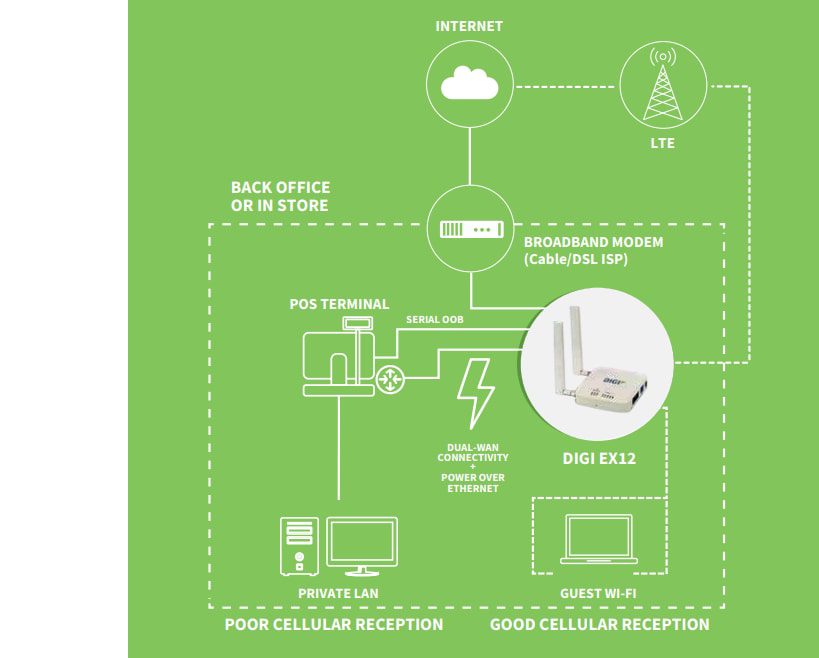

Application Diagram

Digi EX12 LTE Cellular Extenders

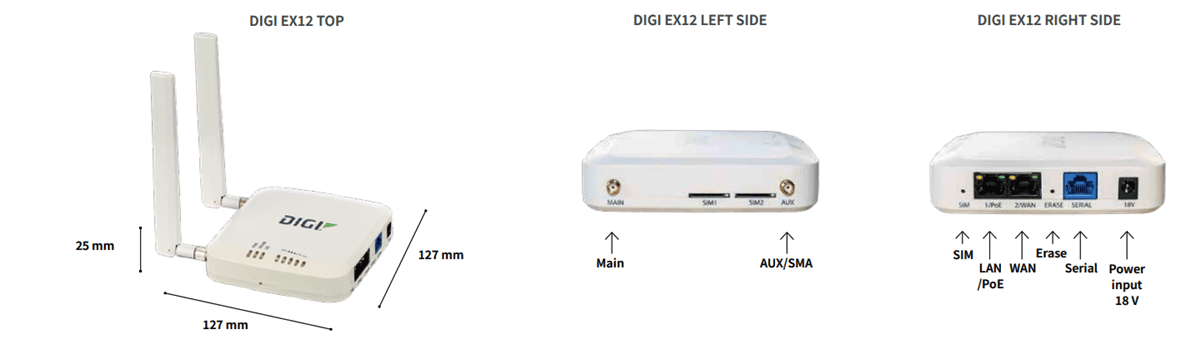

Layout

Digi EX12 LTE Cellular Extenders
