Dialight 657 Series Bi- & Tri-Color LED Indicators

Dialight 657 Series Bi- and Tri-Color Watertight LED Panel Mount Indicators are IP67, and NEMA 4X certified, designed with a highly durable watertight housing. The Bi- and Tri-Color PMIs are offered with a doomed or flat lens and 3 or 4 lead wires, respectively. Additionally, the PMIs feature 10VDC to 30VDC with no resistor required.

The Dialight 657 Series Bi- and Tri-Color LED Indicators are available in a polycarbonate housing and operate at a -40°C to +85°C temperature.

Features

Certifications and Ratings
- RoHS compliant
- NEMA 4X
- IP67

Mechanical
- 0.687″ (17.46mm) Mounting hole size
- 0.350″ (8.89mm) Max panel thickness
- 15 in-lbs Mounting torque

Applications

Electrical control panels
Wastewater treatment controls
Buses and transit vehicles dashboards

Agricultural and construction equipment dashboards
Aircraft and military vehicles dashboards
Status Indication on industrial equipment

Specifications

10VDC-30VDC (No resistor required) voltage options
-40°C to +85°C (-40°F to +185°F) Operating temperature
-40°C to +100°C (-40°F to +212°F) Storage temperature
Electrical connection of 18AWG anti-capillary wire
Polycarbonate housing (UL 94V-0)

Polycarbonate lens material (UL 94V-0)
6″ Wire leads (The color is the same color wire as LED color, black wire is common ground)
White nickel-plated bronze lock washer
White nickel-plated brass nut

Dialight 657 Series Bi- & Tri-Color LED Indicators

Features

Applications

Specifications

Videos

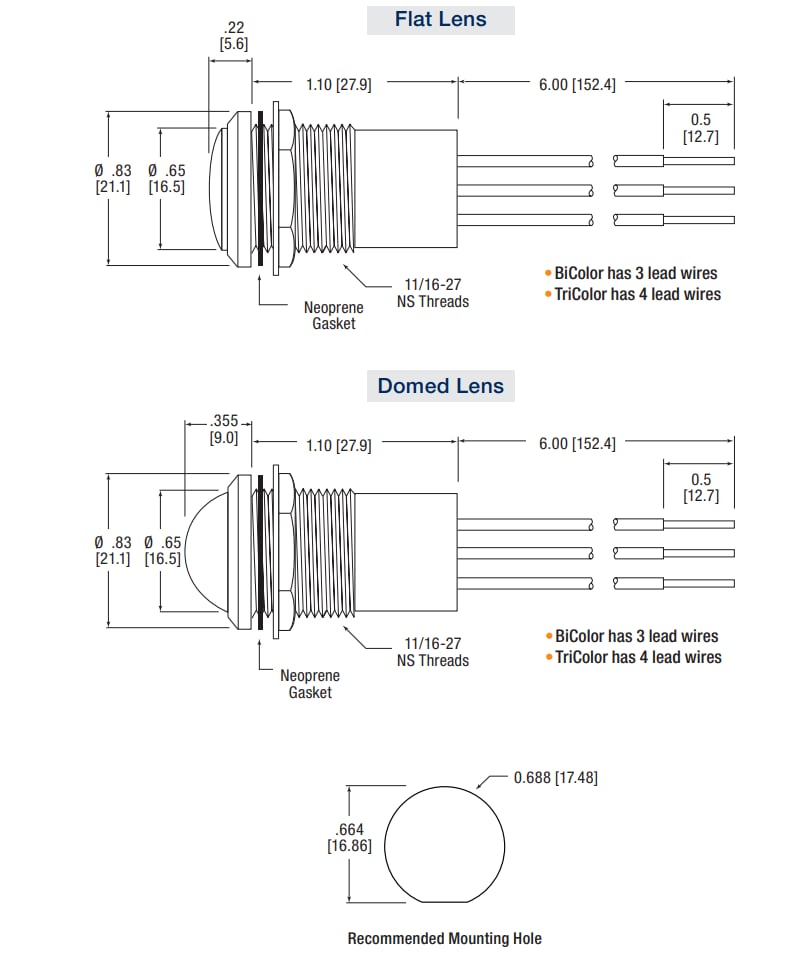

Dimensions inches (mm)
