Dialight 597 Series Micro LED® SMD LEDs

Dialight 597 Series Micro LED® SMD LEDs are available in a full range of colors and are a cost-effective solution for any application. The LEDs offer both single and multi-colors with up to 30mA forward current. The 597 series has a 140° viewing angle and a wide operating temperature range. The Dialight 597 series is housed in 0603 and 0805 packages.

Applications

Datacenter infrastructure
Rackmount, blade, tower systems
High-performance storage subsystems for high-end enterprise
Storage networking hardware
Fiber channel host bus adapter cards (HBAs); converged network adapter cards (CNAs); SCSi adapter cards; InfiniBand adapter cards
Next-gen wireless
Wireless infrastructure
Electronic test and measurement instruments

Networking equipment for enterprise data centers and telecom communication centers
Switches, routers, and network control equipment are interconnected using fiber optic and high-speed wiring
Communications testing equipment
Process controls
Automation
Medical
Handheld devices
Battery-powered applications (2mA version)

Specifications

140° viewing angle
-40°C to +100°C operating temperature
30mA forward current

1.9V forward voltage
0603 and 0805 packages

Dialight 597 Series Micro LED® SMD LEDs

Applications

Specifications

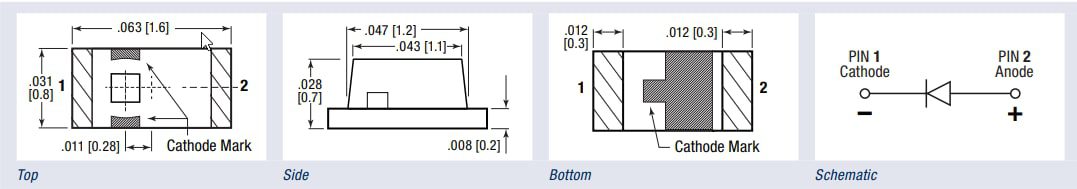

0603 Package Dimensions mm (in)

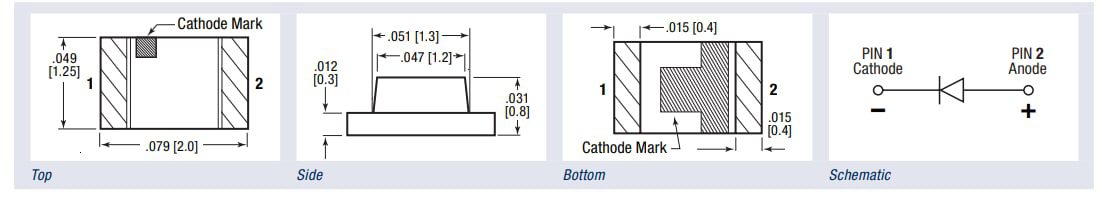

0805 Package Dimensions mm (in)
