DFRobot URM13 Ultrasonic Sensor

DFRobot URM13 Ultrasonic Sensor is an ultrasonic ranging sensor with an open single-probe. The URM13 supports TRIG Pulse-triggered ranging (SR04 compatible), UART, and I²C communication protocols. This allows for more possibilities for actual using scenarios. The sensor works well with 3.3V or 5V mainboards like Arduino and Raspberry Pi. It’s easy to use and integrate into various applications with a small and compact body. UART mode employs standard Modbus-RTU protocol and integrates receive/send control output to allow expansion of the RS485 interface using an external RS485 transceiver.

Features

Small and compact body
Excellent sensitivity
Automatic noise detection and real-time calibration

HC-SR04 compatible
UART and I²C interface, support to expand RS485

Specifications

Power Supply: 3.3~5.5V DC
Max Instantaneous Work Current: 350mA
Operating Temperature: -10℃～＋70℃
Effective Measuring Range: 15cm～900cm

Resolution: 1cm
Accuracy: 1%
Measuring Frequency: 10Hz Max

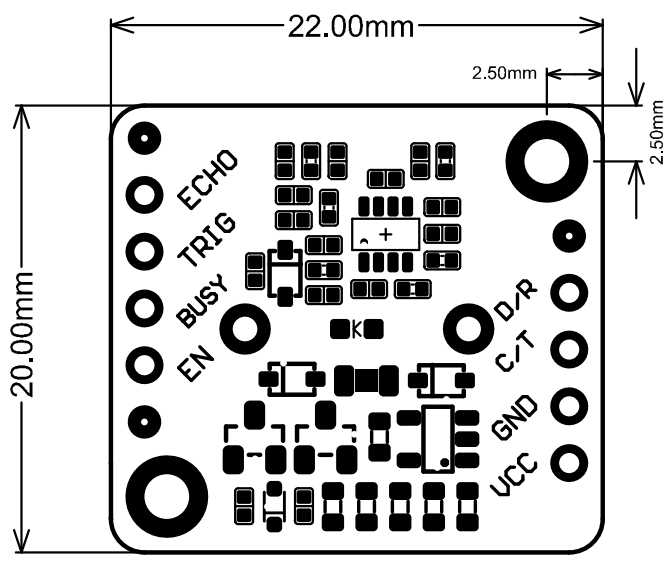

Dimension: 22×20mm/0.87×0.79″
