DFRobot UPS HAT for Jetson Nano

DFRobot UPS HAT for Jetson Nano is an advanced uninterruptible Power supply UPS module that provides up to 5.1V 8000mA backup power for the Jetson Nano board. The HAT features intelligent power management and supports multiple functions like power loss/adapter fault detection. Other functions include automatic startup, complete shutdown from software, advanced power path management, I²C bus communication. Onboard LED indicators are available for monitoring battery capacity. It is powered by six 18650 batteries.

Features

Continuous operation for up to 10~30 hours (depending on the battery type and the amount of battery used)
Provides a maximum of 5.1V 8000mA backup power.
Can work with 1/2/3/4/5/6 18650 lithium-ion batteries
Support 3A fast battery charging
Integrated battery protection circuit
Integrated overcurrent protection and over-voltage protection
Integrate Maxim’s fuel gauge system (read battery voltage and percentage through I²C)
Intelligent automatic charging and discharging
The on-board blue LED indicator shows the power on/off status

On-board 4 green LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%
The onboard button can control the power on/off (short press the button-turn on, press and hold the button for at least 3 seconds-turn off)
Power loss or power adapter fault detection (LED and GPIO indication)
On-board XH2.54 power output connector for powering other devices
Mounting holes and standoffs provide mechanical stability of Jetson Nano and T208 components

Specifications

5Vdc±5%, ≥4A Power input
5.1V±5% maximum 8A UPS output
3A UPS charging current

4.24V terminal battery voltage
4.1V charging threshold

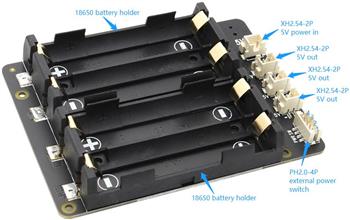

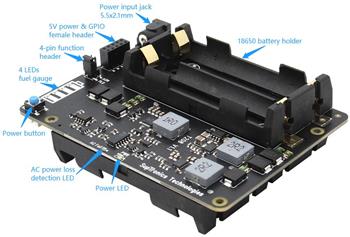

Overview
