DFRobot Industrial Isolated DC-DC Buck Converter

DFRobot Industrial Isolated DC-DC Buck Converter is a 50W high-power step-down module offering a 9V to 18V input voltage range and a maximum output of 5V/10A. This buck converter has the characteristics of high isolation withstand voltage of 1500V DC or 800V AC, low radiation interference, and ripple noise. The isolated DC-DC buck converter offers short-circuit protection and input under-voltage protection mechanisms that allow it to be widely used in portable power supply systems. Typical applications include chassis, railway locomotives, new energy, communications, electric power, and industrial control.

Features

Up to 50W output power
1500V DC to 800V AC high isolation withstand voltage
Low radiation interference and low ripple noise

Environmental-friendly design
RoHS compliant
-40°C to 85°C working temperature range

Specifications

9V to 18V input voltage range
5V output voltage
0 to 10A output current
50W maximum output power
83% conversion efficiency
1500V insulation voltage (input-output, test time 1 minute, and leakage current less than 1mA)

1000V input-shell (FG)
500V output-shell (FG)
-55°C to 125°C storage temperature range
5%RH to 95%RH storage humidity
Protection mechanism:
- Short-circuit protection and input under-voltage protection

DFRobot Industrial Isolated DC-DC Buck Converter

Features

Specifications

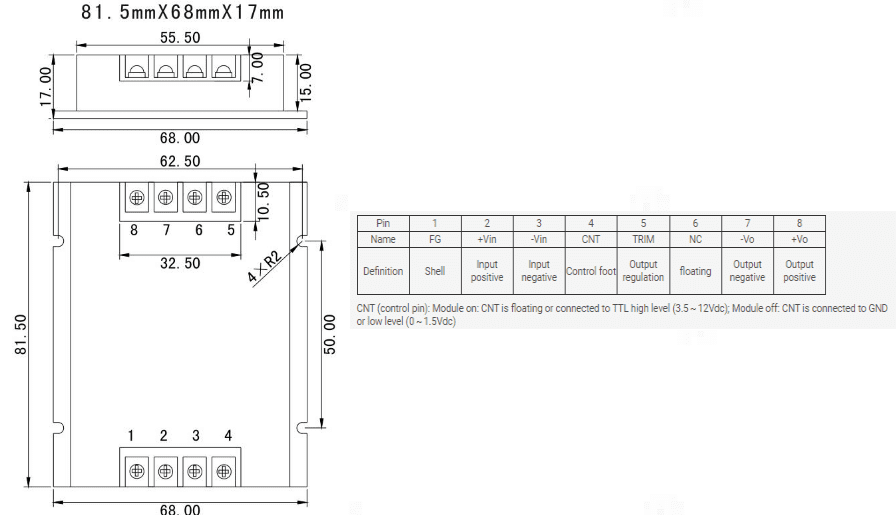

Dimensions
