DFRobot Gravity: LED Switch x 5 Pack

DFRobot Gravity: LED Switch x 5 Pack is a self-lock switch button that lights up color when pressed down which gives the users visual feedback. The little buttons of the LED switch can be used with micro:bit to realize various fun interactive projects. The projects include a switch, backlight keyboard, music player panel, and recording control panel. The gravity LED switch supports programming platforms like MakeCode, Mind+, and Arduino IDE.

Features

5 lighting colors of red, green, white, yellow, and blue are optional
Gravity interface, convenient, and easy-to-use

Large buttons for easy control
With the self-locking function, the LED light does not go out when the button is released

Specifications

3.3V to 5V working voltage
Digital signal output

PH2.0-3P interface
27mm x 26.5mm size

Applications

Backlight keyboard
Music player panel
Recording control panel

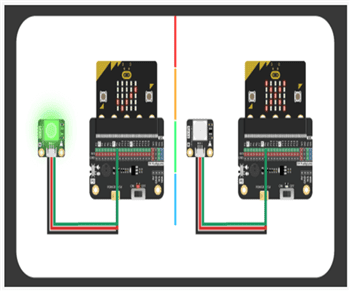

Mind+ Program Example and Effect

DFRobot Gravity: LED Switch x 5 Pack

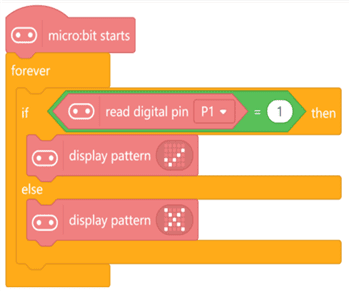

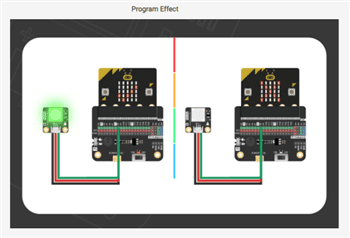

MakeCode Program Example and Effect
