DFRobot Gravity: LED Button x 5 Pack

DFRobot Gravity: LED Button x 5 Pack is similar to a common switch button but lights up different colors (red/yellow/green/blue/white) when pressed down. This LED button can be used with controllers like micro:bit and Arduino to realize various fun interactive projects. The gravity: LED button x 5 pack supports programming platforms like MakeCode, Mind+, and Arduino IDE.

Features

5 lighting colors of red, green, white, yellow, and blue are optional
Convenient and easy-to-use Gravity interface

Large button for easy control
Various types of stickers are provided

Specifications

3.3V to 5V working voltage
Digital signal output

PH2.0-3P interface
27mm x 26.5mm size

Applications

Backlight keyboard
Music player panel
Recording control panel

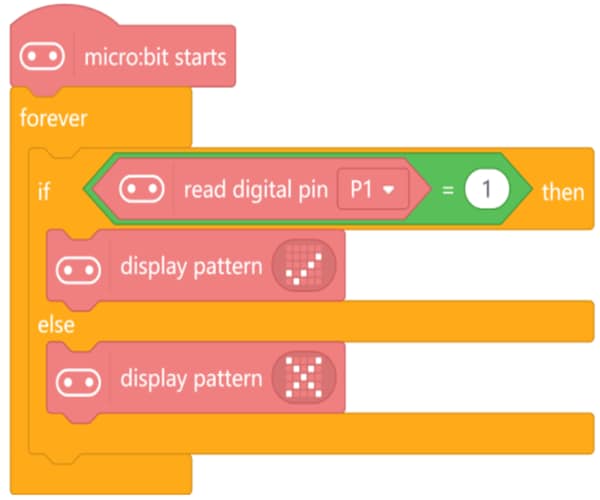

Mind+ Program Example

DFRobot Gravity: LED Button x 5 Pack

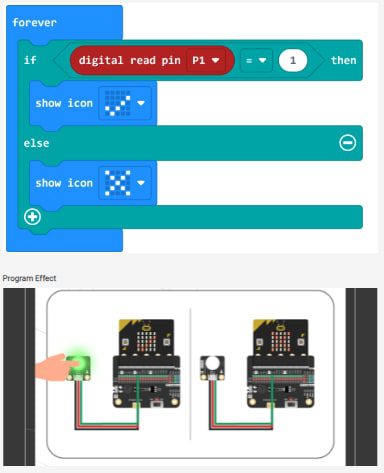

MakeCode Program Example and Effect

DFRobot Gravity: LED Button x 5 Pack
