DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer

DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer is an ultra-low-power high-performance three-axis linear accelerometer. The device has user-selectable full scales of ±2g/±4g/±8g/±16g. It’s capable of measuring accelerations with output data rates from 1.6Hz to 1600Hz. The sensor comes with two independent programmable interrupts and a dedicated internal engine. It can achieve various motion and acceleration detection. This includes free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wake-up for smart power saving, etc. Sample programs are provided for the functions.

Features

LIS2DW12 Triple Axis Accelerometer
±2g/±4g/±8g/±16g user-selectable scale
16-bit data output

Easy-to-use Gravity interface, no need to solder
Change I²C address by the toggle switch

Specifications

3.3V~5V operating voltage
8~10uA (low-power & low-noise mode) / 0.12mA (high performance mode) operating current
Gravity-I²C interface
0x19 (default) / 0x18 (optional) I²C address
±2g/±4g/±8g/±16g user-selectable scale
-40℃~+85℃ operating temperature
1.6Hz~1600Hz frequency
1.3mgRMS (low power mode) ultra-low noise

16-bit data output
32-level FIFO (First-in first-out buffer zone)
Sleep to Wake-up function
10000g high shock survivability
ECOPACK, RoHS and “Green” compliant
27mm x 27mm/1.06″ x 1.06″ module size
Mounting hole size, inner 3.1mm, outer 6mm

DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer

Features

Specifications

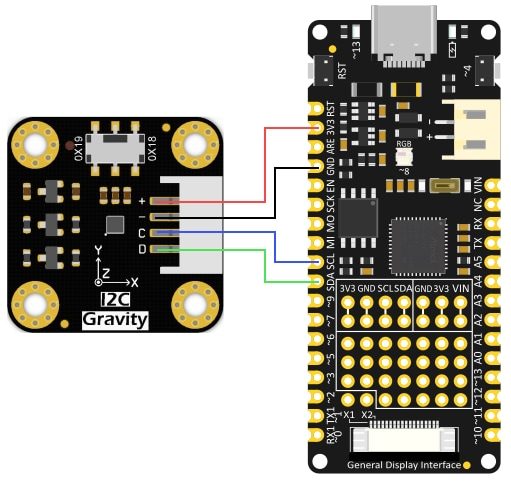

Connection Diagram
