DFRobot Gravity I2C H3LIS200DL Triple Axis Accelerometer

DFRobot Gravity I2C H3LIS200DL Triple Axis Accelerometer is a high-performance triple-axis linear accelerometer with an ultra-low power consumption of 10uA. The accelerometer offers user-selectable scales of ±100g/±200g. It’s capable of measuring accelerations with output data rates from 0.5Hz to 1KHz.

Features

H3LIS200DL Triple Axis Accelerometer
Selectable scales ±100g/±200g

Change I²C address by the toggle switch
Easy-to-use Gravity interface, no need to solder

Applications

Shock detection and record
Free-fall detection
Vehicle crash test

Specifications

3.3V~5V operating voltage
10uA (low power mode)/0.3mA-0.4mA (normal mode) operating current
Gravity-I²C interface
I²C address, 0x19 (default)/0x18 (optional)
±100g/±200g selectable scale
0.5Hz~1KHz frequency

8-bit data output
-40℃~+85℃ operating temperature
10000g high shock survivability
ECOPACK, RoHS and “Green” compliant
27mm x 27mm/1.06″ x 1.06” module size
Mounting hole size, inner diameter 3mm/outer diameter 6mm

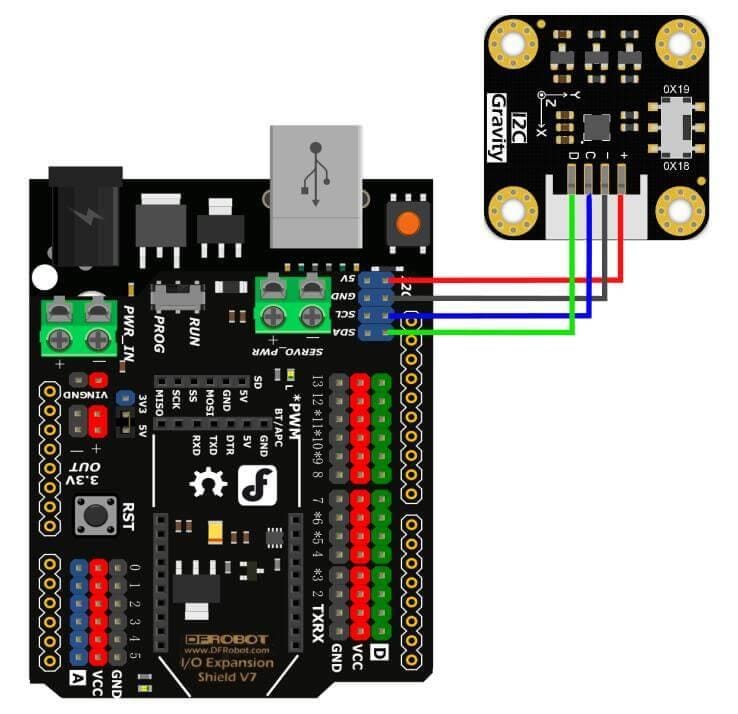

Connection Diagram

DFRobot Gravity I2C H3LIS200DL Triple Axis Accelerometer
