DFRobot Gravity 5V Non-contact Liquid Level Sensor

DFRobot Gravity 5V Non-contact Liquid Level Sensor has a Gravity interface and is able to detect 0-100°C conductive liquid levels in non-metallic containers. It has a sensing range of 3mm. Provided with digital quantity output (low), the sensor can be directly used on Arduino UNO for liquid level. Applications include detection of a water tank, beverage machine, water pipe, scientific experiment test tube, etc.

Features

Gravity interface, easy to connect
Small size, IP67 protection grade
5V supply voltage
3mm sensing distance
0-100°C conductive liquid (can only detect non-metallic containers) applicable medium

High/low (low-level output) output mode
＜5mA working current
-5~80°C working temperature
-20~85°C storage temperature
IP67 protection level

DFRobot Gravity 5V Non-contact Liquid Level Sensor

Features

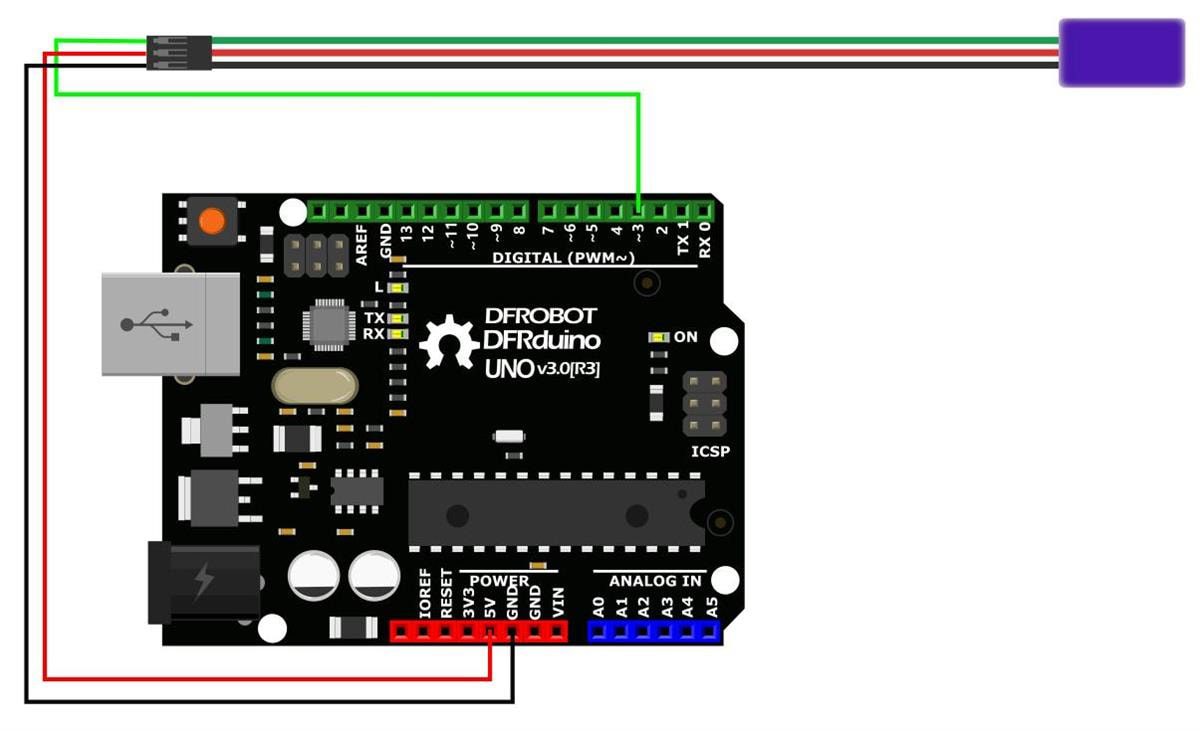

Connection Diagram
