DFRobot Fermion LIS2DW12 Triple Axis Accelerometer Sensor

DFRobot Fermion LIS2DW12 Triple Axis Accelerometer Sensor is a low power high-performance three-axis linear accelerometer. It features low power (50nA), low noise (1.3mgRMS), 32 FIFO, ±2g/±4g/±8g/±16g full scale, 16-bit data output, and 1.6~1.6KHz bandwidth. The sensor comes with two independent programmable interrupts and a dedicated internal engine. It can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wakeup for smart power saving, etc.

Features

LIS2DW12 Triple Axis Accelerometer
±2g/±4g/±8g/±16g selectable scales
16-bit data output
Two independent programmable interrupts

Dedicated internal engine for achieving various functions: free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wakeup for smart power saving, etc.

Applications

Self-balancing Robot
Free-fall detection
Human Action Recognition

Gesture recognition and gaming
Tap/double-tap recognition
Motion detection for wearables

Specifications

3.3V operating voltage
50nA (low power consumption mode)/0.17mA (high performance mode) operating current
SPI/I²C Interface
0x19 (default address)/0x18 (optional pull down the SDO pin to select) I²C Address
±2g/±4g/±8g/±16g optional scale
-40℃~+85℃ operating temperature
16-Bit Data Output

1.6Hz~1600Hz frequency
1.3mg RMS (low power mode) ultra-low noise
32-level FIFO (first-in first-out buffer zone)
10000g high shock survivability
ECOPACK, RoHS and “Green” compliant
15mm x 20mm / 0.59″ x 0.79″ module size

DFRobot Fermion LIS2DW12 Triple Axis Accelerometer Sensor

Features

Applications

Specifications

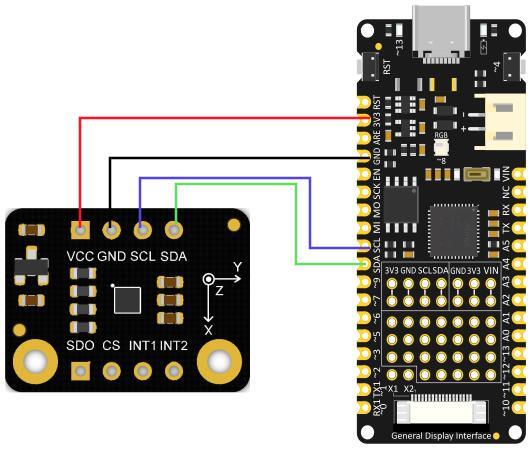

Connect Diagram
