DFRobot F1031V Mass Air Flow Sensor

DFRobot F1031V Mass Air Flow Sensor detects the flow rate of a gas medium in the flow channel using thermodynamic principle with high-precision and good repeatability. This device offers completely calibrated and temperature compensated measured data by incorporating a built-in temperature sensor. The F1031V airflow sensor provides a linear analog voltage output for easy understanding. Typical applications include ventilators, air purifiers, industrial process control, and environment protection.

Features

High precision, fast response, and good repeatability
Completely calibrated and temperature compensated

150SLM measuring range (standard-state: 20℃ gas temperature and 101.325kPa gas pressure)

Specifications

5V power supply
25mA operating current
<4% FS accuracy

50ms response time
-25℃ to 65℃ operating temperature range
<100kPa working pressure

Applications

Intensive care ventilator
Portable ventilator
Air purifier

Environment protection
Industrial process control

DFRobot F1031V Mass Air Flow Sensor

Features

Specifications

Applications

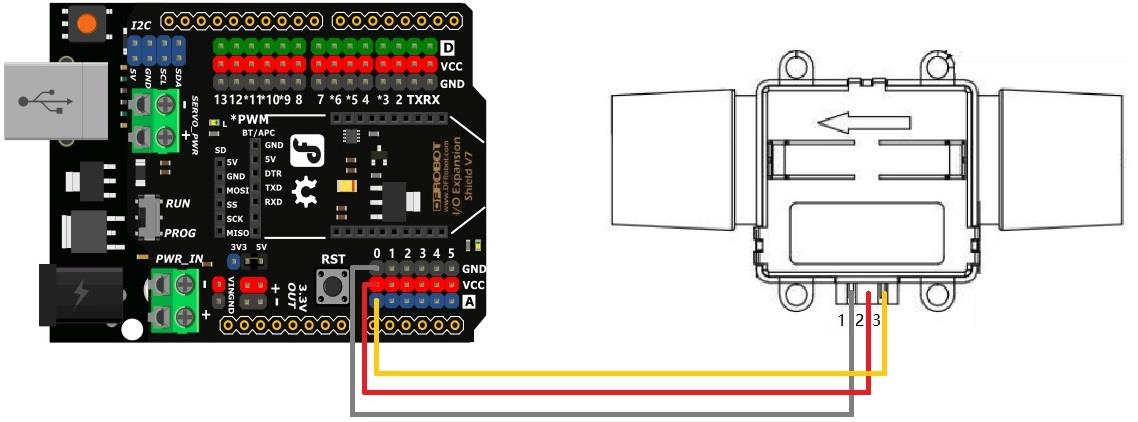

Connection Diagram (with Arduino UNO)
