DFRobot ESP32-C3-DevKitC-02 Development Board

DFRobot ESP32-C3-DevKitC-02 Development Board is based on the ESP32-C3-WROOM-02 general-purpose module with 4MB SPI flash. The board integrates complete Wi-Fi and BLUETOOTH® LE functions. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Connect peripherals with jumper wires or mount the ESP32-C3-DevKitC-02 on a breadboard.

Features

  • Integrates complete Wi-Fi functions
  • Integrates complete BLUETOOTH® LE functions

Specifications

  • ESP32-C3 embedded, 32-bit RISC-V single-core processor, up to 160MHz
  • 384KB ROM
  • 400KB SRAM
  • 8KB RTC SRAM
  • 40MHz crystal oscillator
  • 4MB SPI flash
  • Operating Voltage/ Power supply: 3.0~3.6V
  • Operating Temperature Range: –40~85°C

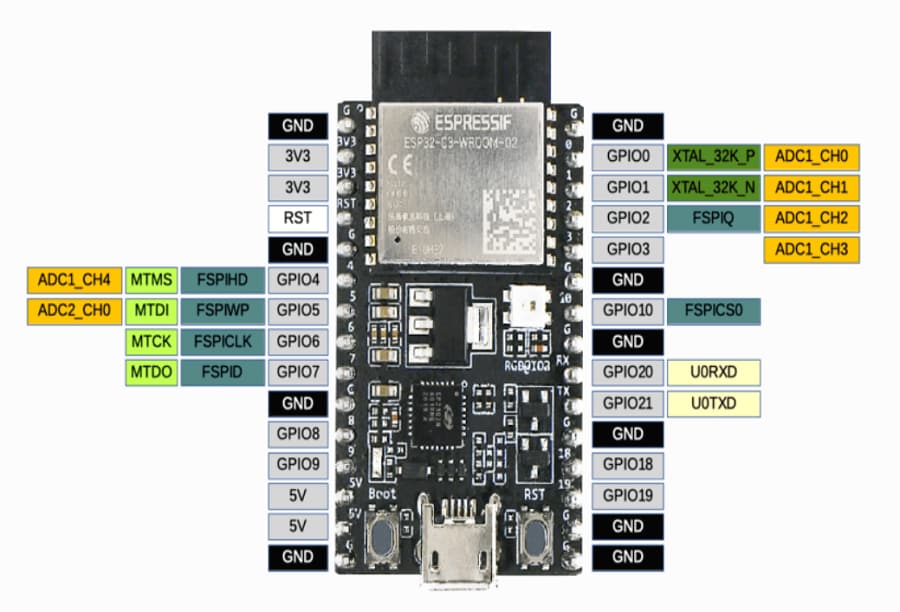

Pin Header

DFRobot ESP32-C3-DevKitC-02 Development Board

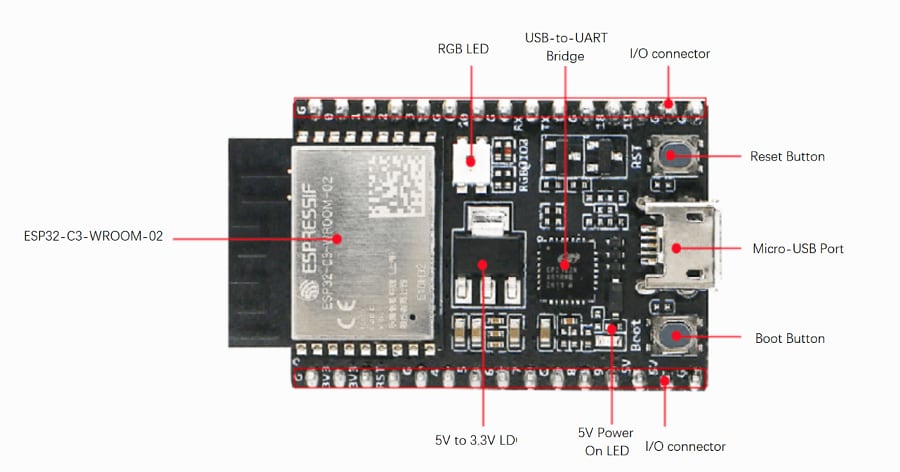

Description of Components

DFRobot ESP32-C3-DevKitC-02 Development Board
