DFRobot DFR0797 5V Electromagnet

DFRobot DFR0797 5V Electromagnet with 15kg holding force and 2W power that is operated at 5V. This electromagnet comes in a small body and can be applied to DIY electromagnetic lock, smart storage cabinet, and intelligent door. The magnetic poles of the electromagnet can be changed by swapping the negative and positive poles of the input power.

Specifications

  • 5V DC rated voltage
  • 2W rated power
  • 15Kg holding force
  • 28cm wire length

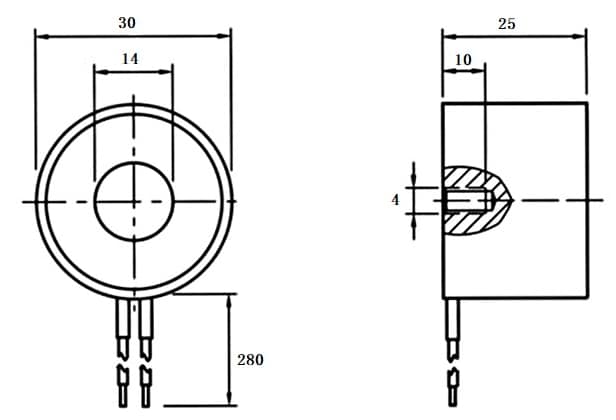

Mechanical Drawing

Mechanical Drawing - DFRobot DFR0797 5V Electromagnet
