DFRobot DFR0768 DFPlayer Pro Module

DFRobot DFR0768 DFPlayer Pro Module is a mini powerful MP3 player module that supports four controlling modes like Arduino, AT command, on-board buttons, and ADKEY. This mp3 module features stereo dual-channel output, support the USB cable to copy music, and can be used as a sound card for the PC or Raspberry Pi. The DFR0768 DFPlayer comes with an on-board 128MB high-speed storage. This module operates at >20mA current and 3.3V to 5V power supply.

Features

On-board 128MB high-speed storage
Playback switch by button

Dual-channel
Support analog U-disk

Specifications

3.3V to 5V power supply
>20mA operating current
128MB storage
MP3, WAV, WMA, FLAC, AAC, and APE audio format

-20°C to 70°C operating temperature range
5%RH to 95%RH operating humidity
23mm x 24.5mm dimensions

Applications

DIY plush toys
Handmade personalized gift

Musical alarm clock
USB sound card

DFRobot DFR0768 DFPlayer Pro Module

Features

Specifications

Applications

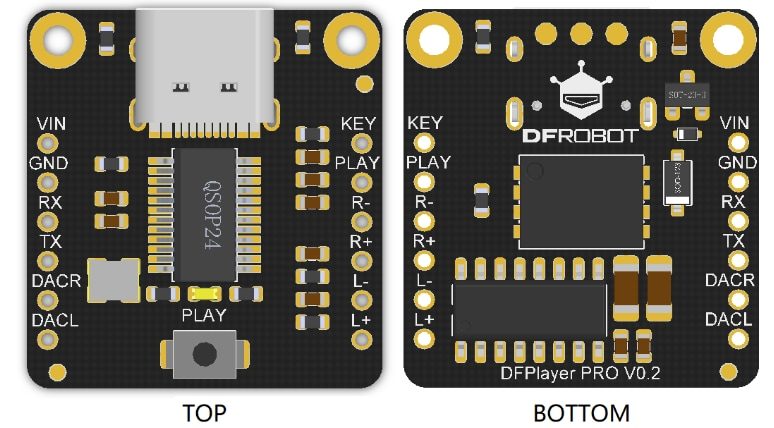

Board Overview

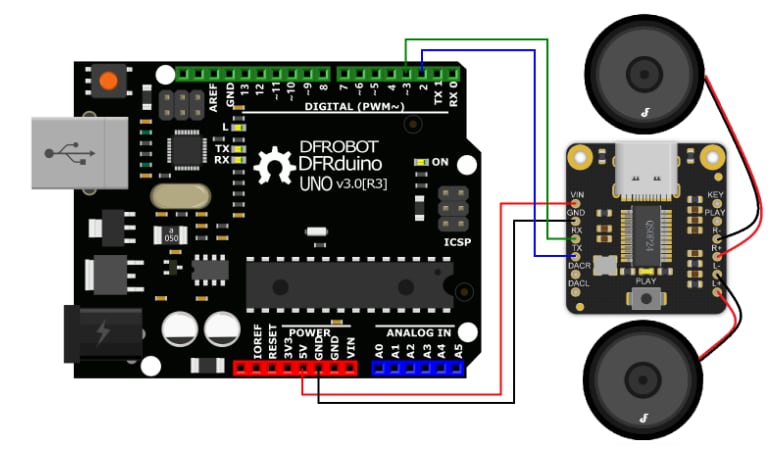

Connection Diagram

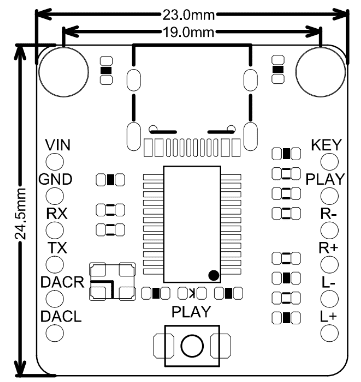

Mechanical Drawing
