DFRobot DFR0665 2.8″ TFT LCD Touchscreen Display

DFRobot DFR0665 2.8″ TFT LCD Touchscreen Display with MicroSD Card features high resolution, wide viewing angle, and simple wiring. This touchscreen display module comes with 320 x 240 color pixels, adopts the ILI9341 driver chip, and integrates XPT2046 that supports resistive touch. The DFR0665 2.8″ TFT LCD display adopts an SPI (4-line) communication mode that performs excellently in the angle of view (60/60/60/60). This LCD display is suitable for sensor monitoring and warning, controller display, flash or 3D displays, and touch interface.

Features

  • Wide viewing angle
  • Resistive touchscreen
  • High resolution 320 x 240 pixels
  • 43.5mA current consumption
  • 300 (cd/m2) typical brightness
  • 57.60×43.20mm display dimensions
  • SPI communication mode
  • Graphical Display Interface (GDI), plug, and play
  • 3.3V to 5.5V operating voltage range
  • Onboard MicroSD card slot
  • 2mm mounting hole diameter
  • -10°C to 60°C operating temperature range

Applications

  • Sensor monitoring and warning
  • Controller display
  • Flash or 3D display
  • Touch interface

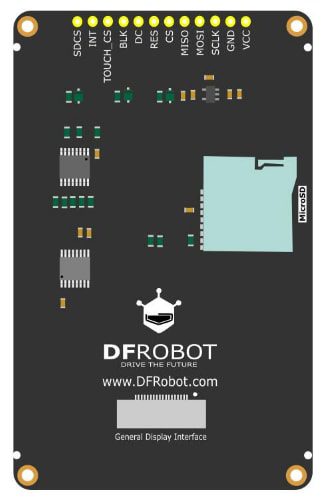

Board Overview

DFRobot DFR0665 2.8

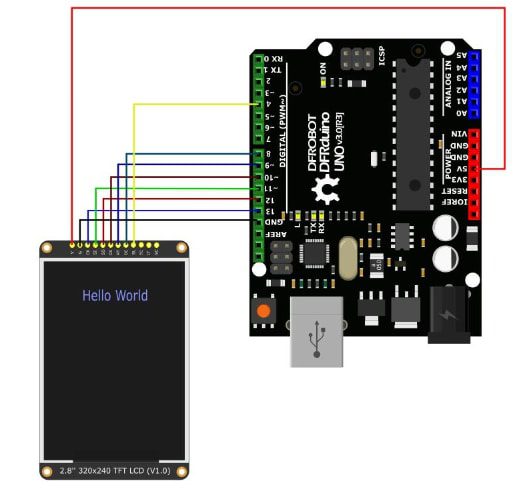

Connection Diagram

DFRobot DFR0665 2.8
