DFRobot DFR0654 FireBeetle ESP32-E IoT Microcontroller

DFRobot DFR0654 FireBeetle ESP32-E IoT Microcontroller is specially designed for IoT, is an ESP-WROOM-32E-based main controller board with dual-core chips. This MCU supports WiFi and Bluetooth^® dual-mode communication, and features small size, ultra-low power consumption, on-board charging circuit and easy-to-use interface. The FireBeetle ESP32-E supports Arduino programming and will support Scratch graphical programming and MicroPython programming. This ESP32-E IoT microcontroller operates at 3.3V supply voltage.

Features

ESP32 dual-core low power maincontroller with 10µA power consumption
WiFi+Bluetooth 4.0 dual-mode module
GDI display port for easy connection
Onboard charging circuit and PH2.0 lithium battery interface
Wi-Fi protocol:
- 802.11 b/g/n/d/e/i/k/r (802.11n, speed up to 150Mbps)
- A-MPDU and A-MSDU aggregation support 0.4µs guard interval)

2.4GHz to 2.5GHz frequency range
Bluetooth v4.2 BR/EDR and BLE standard compliant Bluetooth protocol
CVSD and SBC Bluetooth audio
80mA average operating current
2.54mm pin pitch

Specifications

3.3V operating voltage
3.3V to 5.5V input voltage range
10µA support low-power
600mA @3.3V LDO maximum discharge current

500mA maximum charge current
240MHz main frequency
-40°C to 85°C operating temperature range
25.4mm x 60mm board dimensions

DFRobot DFR0654 FireBeetle ESP32-E IoT Microcontroller

Features

Specifications

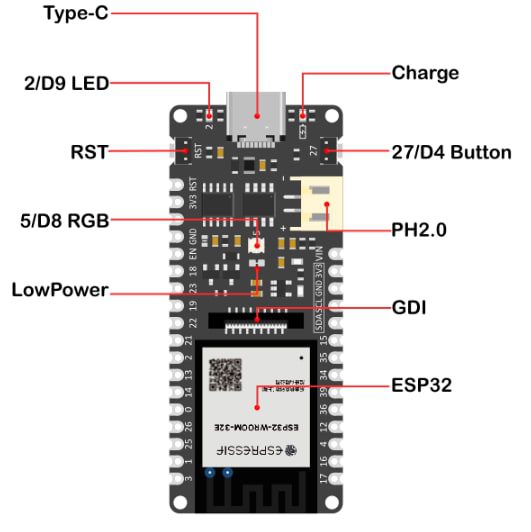

Board Overview

Pinout
