DFRobot 8 Megapixels USB Camera (with Microphone)

DFRobot 8 Megapixels USB Camera (with Microphone) is an 8000K pixels driver-free camera with up to 3264×2448 resolution. The camera is based on the Sony IMX179 CMOS sensor. It supports autofocus, plug and play, and offers HD photos and video. The camera is compatible with multiple systems like Windows, iOS, Android, and Linux. This camera module comes with a digital microphone that captures the sound of 5 meters around the camera when recording video. The design of the USB port also makes it easier to use with a Raspberry Pi and Jetson Nano mainboard.

Features

CMOS photosensitive element
Sony IMX179 sensor
1/3.2inch lens size
1.4μm pixel dimension
6.18mm x 5.85mm image area
3264(H) X 2448(V) 8 Megapixel max effective resolution
JPEG image output format
Supported Resolution and Frame Rate
- 3264X2448 @ 15fps / 2592X1944@ 15fps
- 1920×1080 @ 30fps / 1600X1200@ 30fps
- 1280X720 @ 30fps / 960X540@ 30fps
- 800X600 @ 30fps / 640X480@ 30fps
34dBS/N Ratio
72.5dB dynamic range
0.65V/lux-sec@550nm sensitivity
0.5lux mini illumination
Electronic rolling shutter/Frame exposure shutter type
USB2.0 High-Speed interface type
USB Video Class (UVC) driver-free protocol

USB2.0 OTG OTG protocol
AEC/AEB/AGC Support
Support photo taking by pressing the button
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure adjustable parameter
High-speed photographic apparatus camera, distortionless, size of 1/3.2, Auto-focus, 75-degree camera parameter
4P-2.0 socket fill light power supply port
USB BUS POWER 4P-2.0mm Socket power supply
DC 5V operating voltage
160mA~260mA operating current
-10～70℃ operating temperature
-20～85℃ storage temperature
38mm x 38mm/1.50″ x 1.50″ dimension
OS Supported
- WinXP/Vista/Win7/Win8
- Linux with UVC（above linux-2.6.26）
- MAC-OS X 10.4.8 or later
- Wince with UVC
- Android 4.0 or above with UVC

DFRobot 8 Megapixels USB Camera (with Microphone)

Features

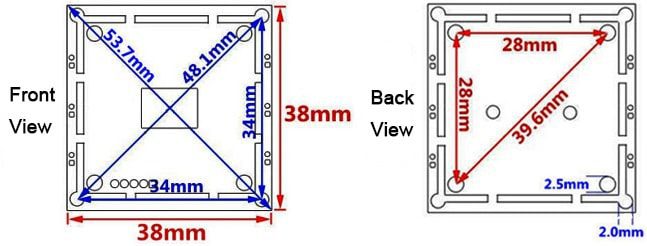

Dimensions
