Delta Electronics V48SK05040 DC/DC Power Converter

Delta Electronics V48SK05040 DC/DC Power Converter offers an industry-standard footprint and pinout. This converter features 94.5% at 5V/40A high efficiency, fixed frequency operation, input Undervoltage-Lockout (UVLO), Over Current Protection (OTP), and 2250V isolation and basic insulation. The V48SK05040 DC/DC power converter is ideally used in networking, telecom, and data center.

Features

94.5% at 5V/40A high efficiency
Industry-standard footprint and pinout
Fixed frequency operation
Input UVLO
OTP

Output OCP hiccup mode
Monotonic startup into normal and pre-biased loads
2250V isolation and basic insulation
No minimum load required

Specifications

33mm x 22.8mm x 10.8mm (1.30inch x 0.90inch x 0.43inch) size (open frame)
33mm x 22.8mm x 12.7mm (1.30inch x 0.90inch x 0.50inch) size (with baseplate)
V- 1/16 brick form factor
48V input voltage
5V output voltage

40A output current
200W DC/DC power
IEC/EN/UL/CSA 62368-1, 2nd
ISO 9001, TL 9000, ISO 14001, QS 9000, and OHSAS18001 certified manufacturing facility

Applications

Networking
Telecom
Data center

Schematic Diagram

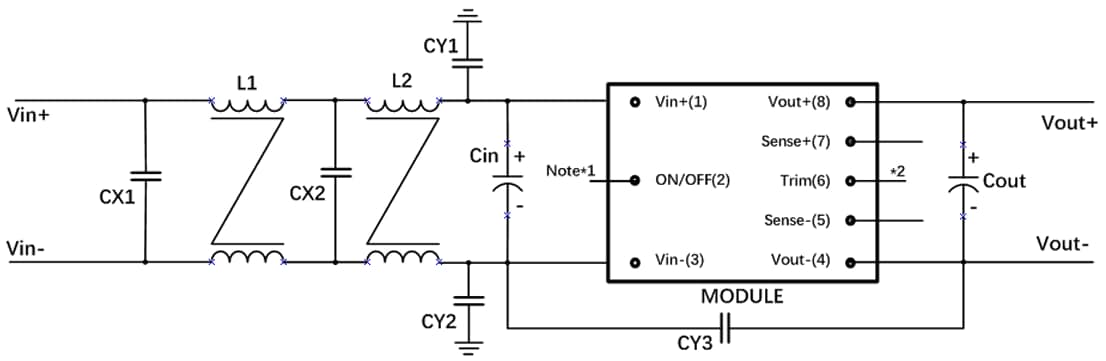

Schematic - Delta Electronics V48SK05040 DC/DC Power Converter

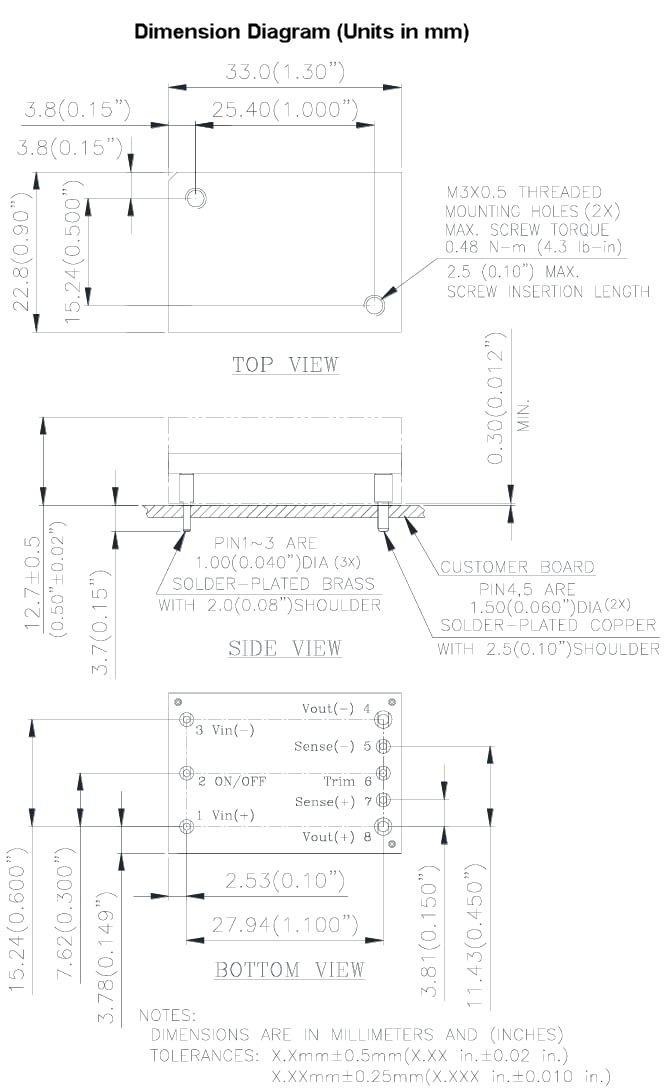

Mechanical Drawing - Delta Electronics V48SK05040 DC/DC Power Converter
