Delta Electronics Q80SV 150W Quarter Brick DC/DC Power Modules

Delta Electronics Q80SV 150W Quarter-Brick DC/DC Power Modules provide efficiency up to 90% and output power up to 150W in a quarter-brick package. Delta Electronics Q80SV 150W DC/DC Power Modules meet the requirements of EN50155 and feature a 1.4V to 170V input voltage range. The series offers 5V to 54V single output voltage and 4242V_DC input to output reinforced isolation. Applications include security, laboratory, industrial, and transportation.

Features

Efficiency up to 90% at 110V_IN
Meets requirements of EN50155
Package with industry-standard pinout
60.6mm x 39mm x 12.7mm dimensions
Output over-voltage protection
Output over current protection

Over-temperature protection
Without a tantalum capacitor inside the module
-40°C to +105°C operating baseplate temperature
4242V_DC input to output reinforced isolation
Applied to altitude up to 5000m

Applications

Security
Laboratory

Industrial
Transportation

Specifications

Input voltage
- 14.4V to 170V continuous
- 12V/200V transient

5V, 12V, 15V, 24V, or 54V single output voltage
150W output power

Delta Electronics Q80SV 150W Quarter Brick DC/DC Power Modules

Features

Applications

Specifications

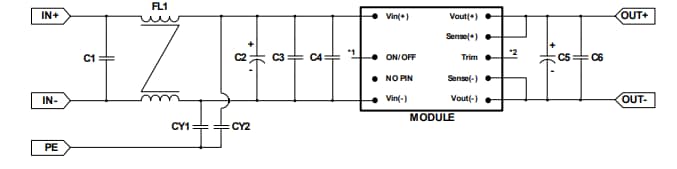

EMI Filter Circuit
