Delta Electronics / Fans High-Efficiency Non-Frost DC Refrigerator Fans

Delta Electronics / Fans High-Efficiency Non-Frost DC Refrigerator Fans feature a dedicated bearing system that will not freeze in temperatures below -40°C. A novel blade design provides sufficient airflow with lower noise in the system tunnel and keeps the uniform temperature inside the refrigerator. With advanced motor driver circuit technology, these fans can achieve high efficiency and low vibration at the same time. Delta Electronics / Fans High-Efficiency Non-Frost DC Refrigerator Fans also feature a PWM function for wide speed range adjustment.

Features

High performance and low noise
- Multiple blade section design
- Low vibration motor
- Optimized pillow structure
High reliability and endurance
- Rust-proof protection for Si-steel
- Waterproof protection for PCB
Locked rotor sensor

Advanced control module
- PWM speed control method
- Complies with cUL + TUV 60335-1
- No spark during operation
Long-life design with a dedicated sleeve bearing material and oil for -40°C to +40°C operating range

Specifications

12V_DC rated voltage
10.8V_DC to 13.2V_DC operating voltage range
25% or 30% start duty cycle at 12V, 25KHz
0.12A to 0.19A average rated current range
1.44W to 2.28W average rated power range
1800RPM to 3350RPM rated speed range
32.0dBA to 36.2dBA average acoustical noise at 1m
10MΩ minimum insulation strength at 500V_DC
5mA maximum dielectric strength at 500V_AC, 50/60Hz for 1 minute
IP51 rated

30,000 hours to 50,000 hours life expectancy at continuous operation
UL 94V-0 plastic pillow and impeller
Superflo bearing system
Temperature ranges
- ±40°C operating
- -40°C to +60°C storage
Relative humidity
- 5% to 90% operating
- 5% to 95% storage

Delta Electronics / Fans High-Efficiency Non-Frost DC Refrigerator Fans

Features

Specifications

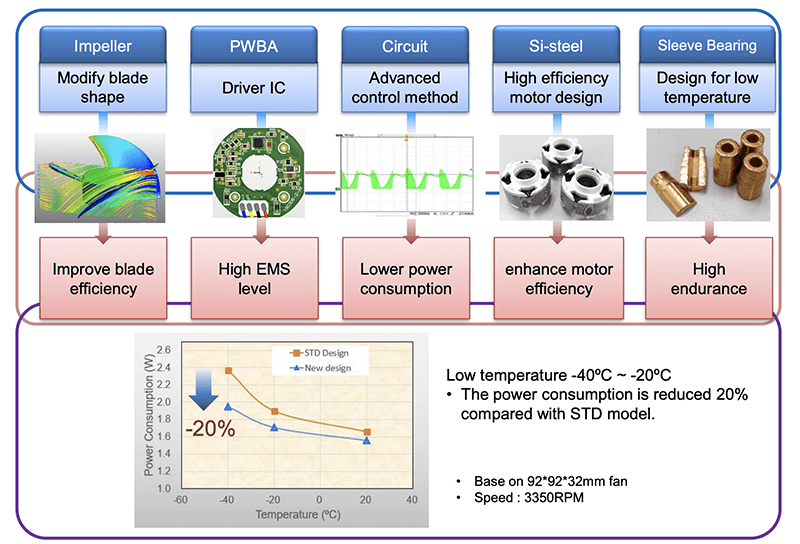

Fan Parameters
