Delta Electronics / Fans HEF Series AC Filter Fans

Delta Electronics / Fans HEF Series AC Filter Fans are equipped with a high-efficiency fiber structure that removes a wide variety of dust particles. These AC filter fans operate at 115V_AC and 230V_AC power input voltage and -15°C to 55°C temperature range. The HEF series offer 50Hz or 60Hz frequency.

Features

115V_AC and 230V_AC power input voltage
-15°C to 55°C operating temperature range

50Hz or 60Hz frequency
IP54 application type protection

Specifications

Fire Class F1 (DIN 53438)
Terminal block connections115VAC and 230VAC power input voltage
-15°C to 55°C operating temperature range

50Hz or 60Hz frequency
UL 508 / TYPE12 Certification

Applications

Industrial automation
Automotive assembly
Package handling equipment

Food and beverage process controls
Wind energy systems

Product Overview

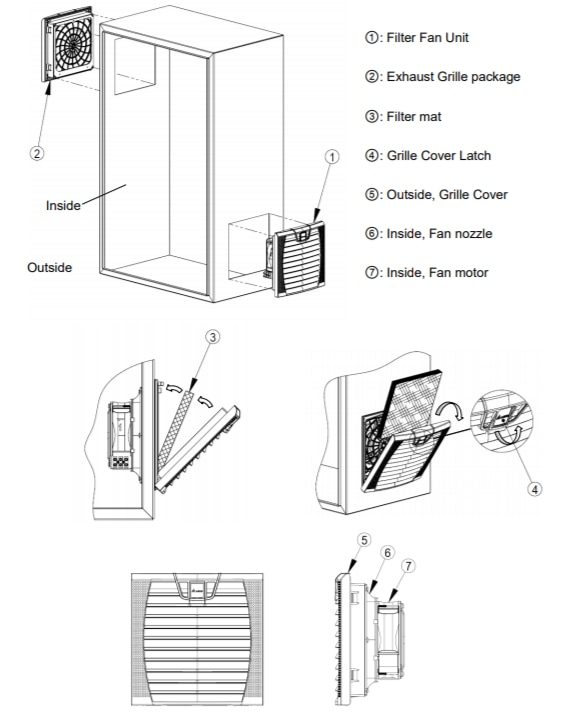

Mechanical Drawing - Delta Electronics / Fans HEF Series AC Filter Fans

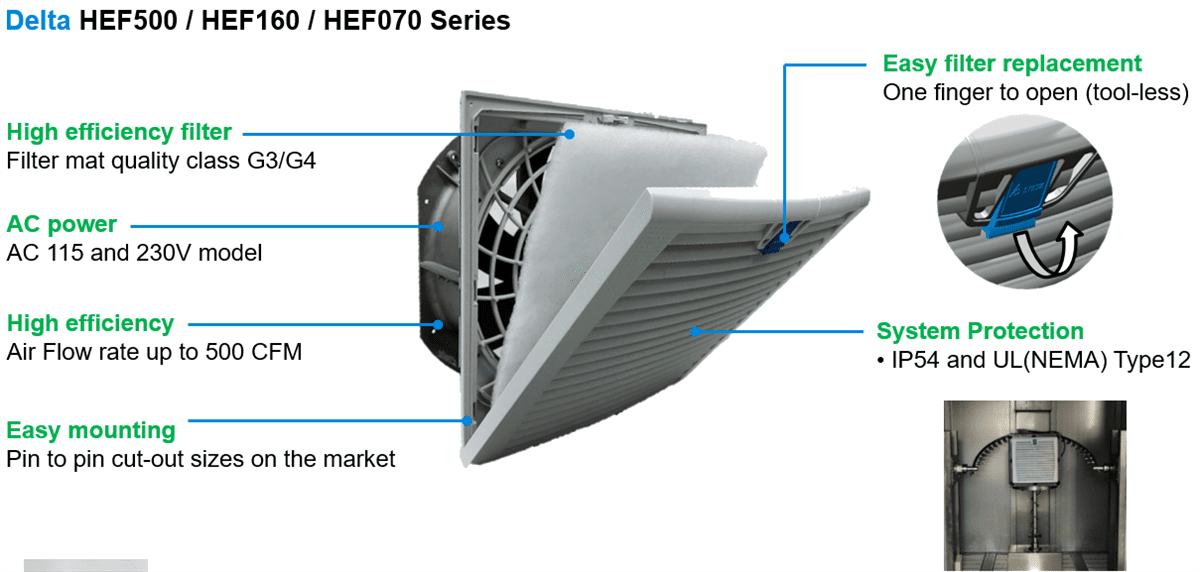

Feature Diagram

Delta Electronics / Fans HEF Series AC Filter Fans
