Delta Electronics E35SE 150W Eighth-Brick DC/DC Power Modules

Delta Electronics E35SE 150W Eighth-Brick DC/DC Power Modules offer efficiency of up to 92.2% and output power up to 150W (24V_IN or 48V_IN) in an eighth-brick package. These modules are fully protected and offer multiple packaging options, including open frame, potting with standard case, and flanged case. Delta Electronics E35SE 150W Eighth-Brick DC/DC Power Modules provide a 9V_DC to 60V_DC input voltage range, 5V to 48V single output voltage, and up to 4242V_DC isolation.

Features

Efficiency up to 92.2%
Fully protected
- Input undervoltage lockout (UVLO)
- Output over-voltage protection (OVP)
- Over-current protection (OCP)
- Over-temperature protection (OTP)
Wide output voltage trim range

Monotonic and pre-biased startup
No minimum load required
Up to 4242V_DC isolation
Working altitude up to 5500m
Multiple packaging options – open frame, potting with a standard case, and flanged case
-40°C to +105°C operating baseplate temperature

Specifications

Output power
- 150W at 24V_IN, 48V_IN
- 120W at 12V_IN

9V_DC to 60V_DC input voltage
5V, 12V, 24V, or 48V single output voltage

Delta Electronics E35SE 150W Eighth-Brick DC/DC Power Modules

Features

Specifications

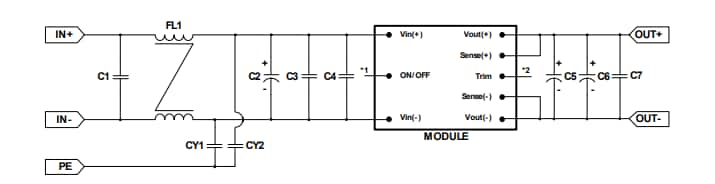

EMI Filter Circuit
