Delta Electronics DPS Front-End Power Supplies

Delta Electronics DPS Front-End Power Supplies feature CRPS and Slim Type power supplies. The DPS series offers a 90V_AC to 264V_AC input voltage range and a 12V_DC main output voltage. The CRPS AC-DC power supply provides a 2.9-inch wide rack mount enclosure, while the Slim Type power supply provides a 2.1-inch wide enclosure for space-saving applications. The Delta Electronics DPS Front-End Power Supplies are RoHS compliant and designed primarily for enterprise server applications.

Features

Meets 80 PLUS Platinum efficiency
1U height
2.9-inch wide rack mount enclosure (CRPS)
2.1-inch wide rack mount enclosure (slim type)
Redundant (N+1) operation
Power factor correction
Remote on/off control

Remote sense
Internal cooling fan (variable speed)
Overvoltage protection
Overcurrent protection
Overtemperature protection
PMBus 1.2 support
RoHS compliant

Specifications

CRPS
- 90V_AC to 264V_AC input voltage range
- 12V_DC main output voltage
- 45.8A to 108A main output rated current
- 550W to 1300W rated power range
- >94% efficiency
- 47Hz to 63Hz frequency range
- 0°C to +55°C operating temperature range
- -40°C to +70°C storage temperature range
- 185mm x 73.5mm x 40mm dimensions

Slim Type
- 90V_AC to 264V_AC input voltage range
- 12V_DC main output voltage
- 65.57A to 83.3A main output rated current
- 800W to 1000W rated power
- >94% efficiency
- 47Hz to 63Hz frequency range
- 0°C to +55°C operating temperature range
- -40°C to +70°C storage temperature range
- 240mm x 50.5mm x 40mm dimensions

Delta Electronics DPS Front-End Power Supplies

Features

Specifications

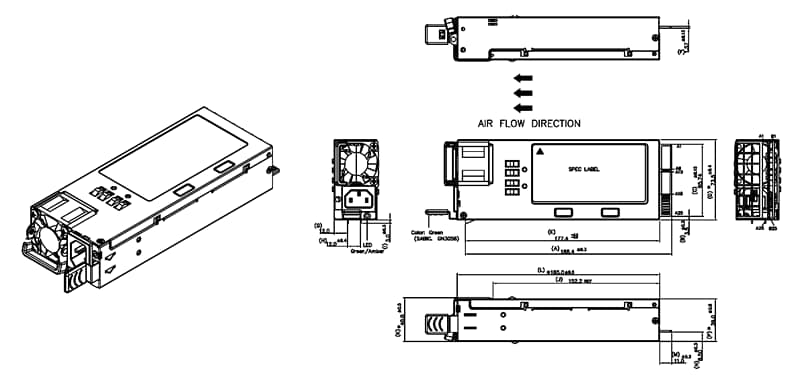

CRPS Mechanical Drawing

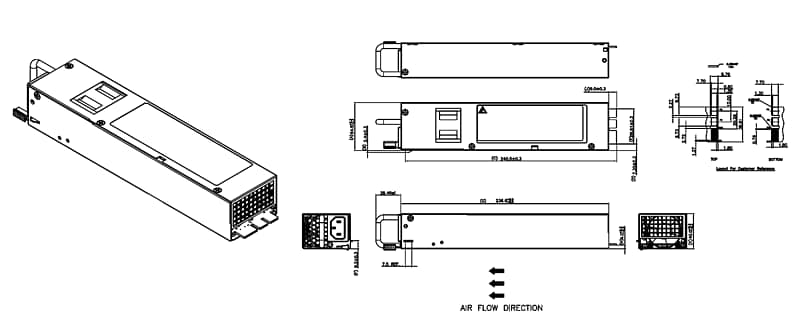

Slim Type Mechanical Drawing
