Dailywell TZ Anti-Vandal Piezo Switches

Dailywell TZ Anti-Vandal Piezo Switches feature optional light-up RGB-type LEDs and provide 50 million cycles minimum operating life. Dailywell TZ Pulse Piezo Switches feature 5VAC/DC to 24VAC/DC at a 1A pulse mode rating and 1Ω maximum contact resistance. The RGB-type LEDs allow users to apply a wide range of color mixing to their design needs. The series operates over a -20°C to +65°C temperature range.

Features

  • 5VAC/DC to 24VAC/DC at 1A pulse mode rating
  • 50 million cycles minimum operating life
  • 1Ω max contact resistance
  • -20°C to +65°C operating temperature range
  • Aluminum alloy bushing
  • Silicone, epoxy sealing
  • Nickel-plated brass hex nut
  • Optional LED illuminated ring
  • RGB LED color

Application Diagrams

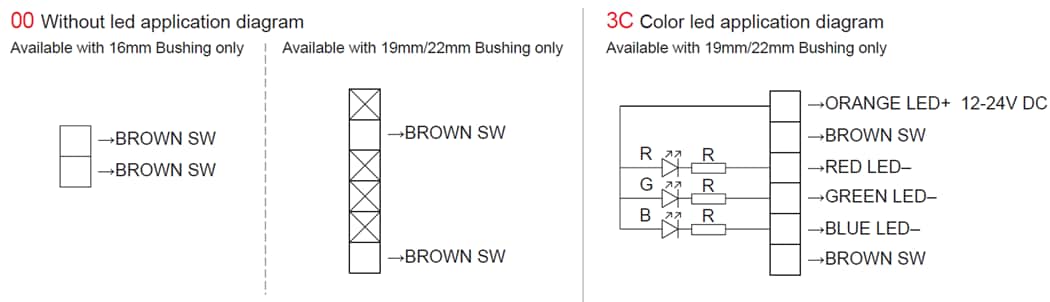

Application Circuit Diagram - Dailywell TZ Anti-Vandal Piezo Switches
