CUI Inc VOF-S12B 10W/12W Open-Frame Power Supplies

CUI Inc VOF-S12B 10W/12W Open-Frame Power Supplies are housed in a compact, board-mount package with dimensions of 38.10mm x 25.40mm x 19.20mm. These open-frame modules feature 3kV_AC isolation, <75mW no-load power consumption, and 5V_DC to 24V_DC voltage configuration range. CUI Inc VOF-S12B power supplies are ideal for space-constrained, low-power information technology equipment (ITE), consumer electronics, and industrial applications.

Features

Class II construction
Open frame
Board mount
Overvoltage and short-circuit protections

Commercial grade
CISPR32 EN 55032 Class B compliant
UL/EN/IEC 62368 certified
Meets EN/IEC 60335

Applications

Consumer electronics
Industrial
ITE

Specifications

5V_DC to 24V_DC voltage configuration range
Universal input voltage range of 90V_AC to 264V_AC
<75mW no-load power consumption

3kV_AC isolation
38.10mm x 25.40mm x 19.20mm dimensions (1.5″ x 1″ x 0.756″)

CUI Inc VOF-S12B 10W/12W Open-Frame Power Supplies

Features

Applications

Specifications

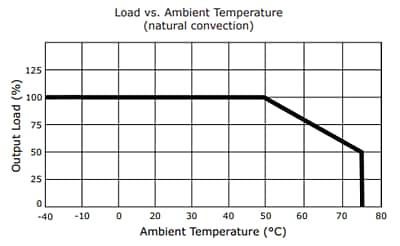

Derating Curve
