CUI Inc VGS-350D AC/DC Power Supplies

CUI Inc VGS-350D AC/DC Power Supplies feature a 300W to 350.4W adjustable output voltage range housed in a compact metal case. The power supplies offer low-profile dimensions and baseplate cooling. CUI Inc VGS-350D AC/DC Power Supplies provide over-temperature, over-voltage, over-current, and short-circuit protection within a -40°C to +85°C operating temperature range. The power supplies have dual-use of the same terminal, which accepts AC and DC input. The VGS-350D series’ rugged unit is ideal for reducing standby power usage in industrial applications.

Features

Adjustable output voltage
Baseplate cooling
Over-temperature protection
Output over-voltage protection
Over-current protection
Short-circuit protection

5000m operating altitude
Accepts AC or DC input (dual-use of same terminal)
EN/UL/BS EN 62368-1
RoHS compliant
150% peak load output for 1s

Specifications

4.5V_DC to 50.4V_DC out voltage range
60A to 7.32A max output current range
300W to 350.4W max output power range
200mV_p-p to 240mV_p-p typical ripple and noise range
91% to 94% typical efficiency at 230V_AC

85V_AC to 305V_AC, 120V_DC to 430V_DC input voltage
47Hz to 63Hz frequency range
-40°C to +85°C operating temperature range
-40°C to +85°C storage temperature range
220mm x 62mm x 31mm dimensions

CUI Inc VGS-350D AC/DC Power Supplies

Features

Specifications

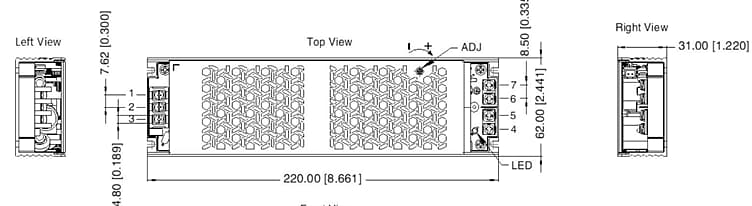

Mechanical Drawing
